Westinghouse Type DI 239-F Magnetic Brake

Ohio Contact replacement crane controls for Westinghouse Type DI 239-F Magnetic Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

Westinghouse Type DI 239-F Magnetic Brake

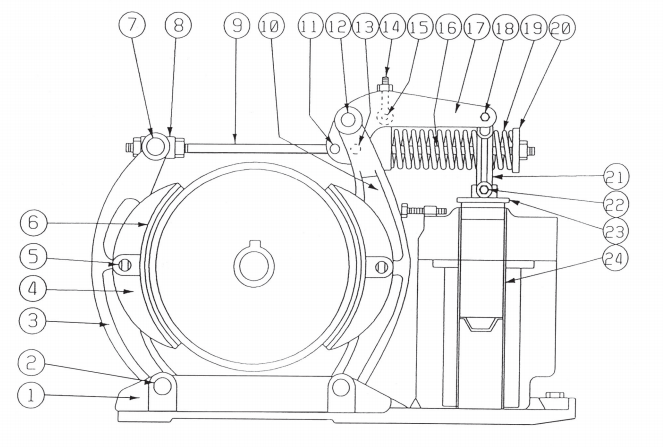

Item No. OEM No. Description
0 1397976 Rear Arm Bushing-Upper
0 1397975 Arm Bushing-Lower
0 1397974 Front Arm Bushing-Upper
0 822229 Plunger Guide Bushing
0 1397977 Pivot Bushing
0 1397932 Base Bushing
0 760344 Shunt Coil
0 599262 Air Gap Spacer
0 1397978 Rod Bushing
0 568578 Type DI-Operat. Mag. w/out Coil
23 599261 Plunger
22 1496317 Link Pin-Lower
21 599253 Connecting Link
20 599259 Spring Seat
19 599258 Spring
18 1494549 Link Pin-Upper
17 1397956 Brake Lever
16 599257 Spring Rod
15 599256 Hand Release Rod Pin
14 599255 Hand Release Rod
13 1397988 Spring Rod Pin
12 1397989 Brake Lever Pivot Pin
11 1397988 Connecting Rod Pin
10 1397955 Brake Arm-Rear
9 599249 Connecting Rod
8 822228 Hinge-Block
7 1397993 Brake Arm Pin-Upper
6 599243 Lining
5 599244 Brake Shoe Pivot Bolt
4 599242 Brake Shoe w/ Lining
3 1397954 Brake Arm-Front
2 1397987 Brake Arm Pin-Lower
1 1496318 Base
