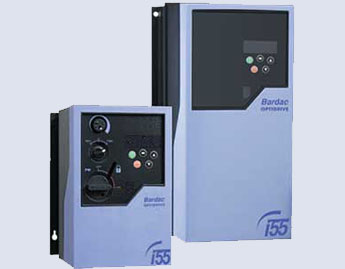

Optidrive i55 NEMA 12

NEMA 12, IP55 AC DRIVES 0.5 TO 5 HP

  • Supply Options:
    • 110-120V 1-phase in, 115V 1-phase out
    • 110-120V 1-phase in, 230V 3-phase out
    • 220-230V 1-phase in, 230V 1-phase out
    • 220-230V 1-phase in, 230V 3-phase out
    • 380-480V 3-phase
  • Wash down duty
  • Rugged, wall mounting, compact packaging
  • Conduit cable entry
  • ODP sensorless vector specification
  • ODE standard VFD specification
  • ODE1 single phase VFD specification
  • 40°C, heavy duty, 150%, 60 secs rating
  • Integral RFI filter option
[optidrive_list]


SENSORLESS VECTOR i55, NEMA12

220/240V, SINGLE PHASE INPUT, 230V, 3-PHASE OUTPUT

Size Basic Keys & Display With Switched Option Dimensions
(H x W x D)
Heavy Duty Rating
150%, 60 sec overload
HP Amps
1 ODP-12005-US-i ODP-12005-US-iS 7.9″ x 5.5″ x 6.4″ 0.5 2.3
1 ODP-12010-US-i ODP-12010-US-iS 7.9″ x 5.5″ x 6.4″ 1.0 4.3
2 ODP-22020-US-i ODP-22020-US-iS 12.2″ x 6.5″ x 7.0″ 2.0 7.0
2 ODP-22030-US-i ODP-22030-US-iS 12.2″ x 6.5″ x 7.0″ 3.0 10.5

380/460V, 3-PHASE INPUT, 380/460V, 3-PHASE OUTPUT

2 ODP-24010-US-i ODP-24010-US-iS 12.2″ x 6.5″ x 7.0″ 1.0 2.2
2 ODP-24020-US-i ODP-24020-US-iS 12.2″ x 6.5″ x 7.0″ 2.0 4.1
2 ODP-24030-US-i ODP-24030-US-iS 12.2″ x 6.5″ x 7.0″ 3.0 5.8
2 ODP-24050-US-i ODP-24050-US-iS 12.2″ x 6.5″ x 7.0″ 5.0 9.5

STANDARD VFD i55, NEMA12

110/120V, SINGLE PHASE INPUT, 230V, 3-PHASE OUTPUT

Size Basic Keys & Display With Switched Option Dimensions
(H x W x D)
Heavy Duty Rating
150%, 60 sec overload
HP Amps
1 ODE-11005-US-i ODP-11005-US-iS 7.9″ x 5.5″ x 6.4″ 0.5 2.3
1 ODE-11010-US-i ODP-11010-US-iS 7.9″ x 5.5″ x 6.4″ 1.0 4.3
2 ODE-21015-US-i ODP-21015-US-iS 12.2″ x 6.5″ x 7.0″ 1.5 5.8

220/240V, SINGLE PHASE INPUT, 230V, 3-PHASE OUTPUT

1 ODE-12005-US-i ODE-12005-US-iS 7.9″ x 5.5″ x 6.4″ 0.5 2.3
1 ODE-12010-US-i ODE-12010-US-iS 7.9″ x 5.5″ x 6.4″ 1.0 4.3
1 ODE-12020-US-i ODE-12020-US-iS 7.9″ x 505″ x 6.4″ 2.0 7.0
2 ODE-22030-US-i ODE-22030-US-iS 12.2″ x 6.5″ x 7.0″ 3.0 10.5

380/460V, 3-PHASE INPUT, 380/460V, 3-PHASE OUTPUT

1 ODE-14010-US-i ODE-14010-US-iS 7.9″ x 5.5″ x 6.4″ 1.0 2.2
1 ODE-14020-US-i ODE-14020-US-iS 7.9″ x 5.5″ x 6.4″ 2.0 4.1
2 ODE-24030-US-i ODE-24030-US-iS 12.2″ x 6.5″ x 7.0″ 3.0 5.8
2 ODE-24050-US-i ODE-24050-US-iS 12.2″ x 6.5″ x 7.0″ 5.0 9.5

SINGLE PHASE MOTOR VFD i55, NEMA12

For use with Permanent Split Capacitor (PSC) or Shaded Pole (SP) single phase motors in non-reversing, Variable Torque fan and pump applications only. Note that it important to ensure that the single phase motor you are using is rated for variable speed inverter duty.

110/120V, SINGLE PHASE INPUT, 115V, SINGLE PHASE OUTPUT

Size Basic Keys & Display With Switched Option Dimensions
(H x W x D)
Heavy Duty Rating
150%, 60 sec overload
HP Amps
1 ODE1-11050-US-i ODE1-11050-US-iS 7.9″ x 5.5″ x 6.4″ 0.5 7.0
2 ODE1-21075-US-i ODE1-21075-US-iS 12.2″ x 6.5″ x 7.0″ 0.75 10.5

380/460V, 3-PHASE INPUT, 380/460V, 3-PHASE OUTPUT

1 ODE1-12050-US-i ODE1-12050-US-iS 7.9″ x 5.5″ x 6.4″ 0.5 4.3
1 ODE1-12100-US-i ODE1-12100-US-iS 7.9″ x 5.5″ x 6.4″ 1.0 7.0
2 ODE1-22150-US-i ODE1-22150-US-iS 12.2″ x 6.5″ x 7.0″ 1.5 10.5
