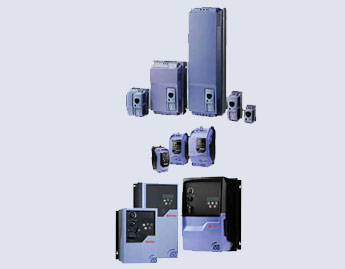

Optidrive

0.5 to 250 HP Industrial drives with filters, brake output transistor, reactors. High starting torque & output up to 1000Hz.

  • Rugged compact packaging
  • Silent running with 32KHz switching
  • Output frequency up to 1000 Hz
  • 175% starting torque
  • Built-in DB transistor up to 250 hp
  • Bipolar 12 bit analog input
  • Easy installation and fast start up
  • Integral filters & line chokes 25-250 hp
  • Fiber optic & RS232/485 network options
  • Optiwand optical programming tool
  • Single phase input up to 60 hp
  • Isolated control circuits
  • Power loss ride through
  • Process control options
  • DC injection brake
  • Programmable I/O
  • Hours run log
  • 50°C ambient

Sizes:

  1. 6.1″ x 3.15″ x 5.1″, 2.5lbs
  2. 10.25″ x 3.95″ x 6.9″, 5.9lbs
  3. 10.25″ x 6.75″ x 6.9″, 12lbs
  4. 20.5″ x 13.4″ x 8.7″, 63lbs
  5. 41.2″ x 13.4″ x 13″, 153lbs
  6. 41.2″ x 13.4″ x 13″, 153lbs
 [optidrive_list]

OPTIDRIVE – 110/120V, SINGLE PHASE IN, 230V, 3-PHASE OUT
Size Model Special
Features		 Heavy Duty Rating
150%, 60 sec overload		 Std Duty Rating
110%, 60 sec overload
HP Amps HP Amps
1 OD-11005-US 0.5 2.3 N/A N/A
1 OD-11010-US 1.0 4.3 N/A N/A
2 OD-21015-US Brake Transistor 1.5 6.0 N/A N/A

OPTIDRIVE – 220/240V, 1 or 3 PHASE IN, 230V, 3-PHASE OUT
Size Model Special
Features		 Heavy Duty Rating
150%, 60 sec overload		 Std Duty Rating
110%, 60 sec overload
HP Amps HP Amps
1 OD-12005-US 0.5 2.3 N/A N/A
1 OD-12010-US 1.0 4.3 N/A N/A
1 OD-12020-US 2.0 7.0 N/A N/A
2 OD-22020-US Brake Transistor 2.0 7.0 N/A N/A
2 OD-22030-US Brake Transistor 3.0 10.5 N/A N/A

OPTIDRIVE – 220/240V, 3 PHASE IN (1 PHASE 50% DERATING), 230V, 3-PHASE OUT
Size Model Special
Features		 Heavy Duty Rating
150%, 60 sec overload		 Std Duty Rating
110%, 60 sec overload
HP Amps HP Amps
3 OD-32040-US Brake Transistor 4 14 5 18
3 OD-32050-US Brake Transistor 5 18 7.5 25
3 OD-32075-US Brake Transistor 7.5 25 10 29.5
4 OD-42100-US Brake Transistor,
Filter, Chokes		 10 39 15 46
4 OD-42150-US Brake Transistor,
Filter, Chokes		 15 46 20 61
4 OD-42200-US Brake Transistor,
Filter, Chokes		 20 61 25 72
4 OD-42250-US Brake Transistor,
Filter, Chokes		 25 72 30 89
5 OD-52300-US Brake Transistor,
Filter, Chokes		 30 90 40 100
5 OD-52400-US Brake Transistor,
Filter, Chokes		 40 110 50 150
5 OD-52600-US Brake Transistor,
Filter, Chokes		 60 150 75 180
6 OD-62750-US Brake Transistor,
Filter, Chokes		 75 240 100 300
6 OD-62100-US Brake Transistor,
Filter, Chokes		 100 300 N/A N/A

OPTIDRIVE – 380/480V, 3 PHASE IN (1 PHASE 50% DERATING), 380/460V, 3-PHASE OUT
Size Model Special
Features		 Heavy Duty Rating
150%, 60 sec overload		 Std Duty Rating
110%, 60 sec overload
HP Amps HP Amps
1 OD-14010-US 1 2.2 N/A N/A
1 OD-14020-US 2 4.1 N/A N/A
2 OD-24010-US Brake Transistor 1 2.2 N/A N/A
2 OD-24020-US Brake Transistor 2 4.1 N/A N/A
2 OD-24030-US Brake Transistor 3 5.8 N/A N/A
2 OD-24050-US Brake Transistor 5 9.5 N/A N/A
3 OD-34075-US Brake Transistor 7.5 14 10 18
3 OD-34100-US Brake Transistor 10 18 15 25
3 OD-34150-US Brake Transistor 15 25 20 29.5
3 OD-34200-US Brake Transistor 20 29.5 N/A N/A
4 OD-44250-US Brake Transistor,
Filter, Chokes		 25 39 30 46
4 OD-44300-US Brake Transistor,
Filter, Chokes		 30 46 40 61
4 OD-44400-US Brake Transistor,
Filter, Chokes		 40 61 50 72
4 OD-44500-US Brake Transistor,
Filter, Chokes		 50 72 60 88
5 OD-54600-US Brake Transistor,
Filter, Chokes		 60 88 75 110
5 OD-54750-US Brake Transistor,
Filter, Chokes		 75 110 100 150
5 OD-54100-US Brake Transistor,
Filter, Chokes		 100 150 150 180
5 OD-54150-US Brake Transistor,
Filter, Chokes		 150 180 N/A N/A
6 OD-64160-US Brake Transistor,
Filter, Chokes		 160 202 200 240
6 OD-64200-US Brake Transistor,
Filter, Chokes		 200 240 250 300
6 OD-64250-US Brake Transistor,
Filter, Chokes		 250 300 N/A N/A
