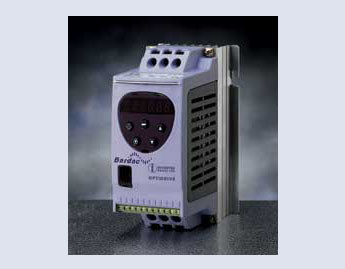

Optidrive E

ECONOMIC EXCELLENCE 0.5 TO 5 HP

  • Supply Options:
    • 110-120V single phase
    • 220-230V single phase
    • 380-480V 3-phase
  • Rugged compact packaging
  • Silent running with 32KHz switching
  • Output frequency up to 1000Hz
  • 12 bit analog input
  • Overload rating 150% for 60 seconds
  • DC injection braking
  • Easy installation and fast start up
  • Isolated control circuits
  • Programmable i/o
  • Hours run log 50°C ambient
  • Power loss ride through
  • Integral RFI filter option

[optidrive_list]



OPTIDRIVE E – 110/120V, SINGLE PHASE INPUT, 230V, 3-PHASE OUTPUT

Size Model Dimensions
(H x W x D, lbs)
Heavy Duty Rating
150%, 60 sec overload
HP Amps
1 ODE-11005-US 6.1″ x 3.15″ x 5.1″, 2.5lbs 0.5 2.3
1 ODE-21010-US 10.25″ x 3.95″ x 6.9″, 6lbs 1.0 4.3
2 ODE-21015-US 10.25″ x 3.95″ x 6.9″, 6lbs 1.5 6.0

OPTIDRIVE E – 220/240V, SINGLE PHASE INPUT, 230V, 3-PHASE OUTPUT

Size Model Dimensions
(H x W x D, lbs)
Heavy Duty Rating
150%, 60 sec overload
HP Amps
1 ODE-12005-US 6.1″ x 3.15″ x 5.1″, 2.5lbs 0.5 2.3
1 ODE-12010-US 6.1″ x 3.15″ x 5.1″, 2.5lbs 1.0 4.3
1 ODE-12020-US 6.1″ x 3.15″ x 5.1″, 2.5lbs 2.0 7.0
2 ODE-22030-US 10.25″ x 3.95″ x 6.9″, 6lbs 3.0 10.5

OPTIDRIVE E – 380/460V, 3 PHASE INPUT, 380/460V, 3-PHASE OUTPUT

Size Model Dimensions
(H x W x D, lbs)
Heavy Duty Rating
150%, 60 sec overload
HP Amps
1 ODE-14010-US 6.1″ x 3.15″ x 5.1″, 2.5lbs 1 2.2
1 ODE-14020-US 6.1″ x 3.15″ x 5.1″, 2.5lbs 2 4.1
2 ODE-24030-US 10.25″ x 3.95″ x 6.9″, 6lbs 3 5.8
2 ODE-24050-US 10.25″ x 3.95″ x 6.9″, 6lbs 5 9.5
Optidrive E
