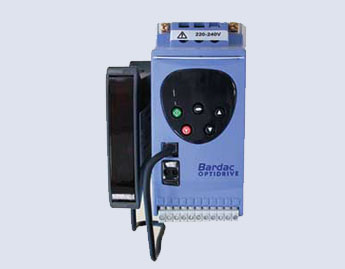

Optidrive Plus

SENSORLESS VECTOR DRIVES

  • 3GV Technology Sensorless vector control
  • 100% torque at zero speed
  • Sensorless speed regulation better than 1%
  • Encoder feedback speed regulation better than 0.1%
  • Torque control
  • Output up to 2KHz size 1-3, 1KHz size 4-6
  • Integral PI controller
  • Additional smarty i/o option
  • Ethernet, Modbus TCP/IP option
  • drive.web savvy programming option
  • Encoder feedback option
  • Rugged compact IP20 packaging
  • Silent running with up to 32KHz switching
  • Output up to 400Hz size 1-2, 250Hz size 3-6
  • 175% starting torque
  • Built-in DB transistor available up to 250 hp
  • Bipolar 12 bit analog input (isolated +/-10V or 4-20mA)
  • Easy installation and fast start up
  • Filters & line chokes available 25-250 hp
  • Fiber optic & RS232/485 network options
  • Optiwand optical programming tool
  • Single phase input up to 60 hp
  • Isolated control circuits
  • Power loss ride through
  • Process control options
  • Programmable i/o
  • Hours run log
  • 50°C ambient
[optidrive_list]

OPTIDRIVE PLUS – 220/240V, 1 or 3 PHASE IN, 230V, 3-PHASE OUT
Size Model Special
Features		 Heavy Duty Rating
150%, 60 sec overload
HP Amps
1 ODP-12005-US Filter 0.5 2.3
1 ODP-12010-US Filter 1.0 4.3
1 ODP-12020-US Filter 2.0 7.0
2 ODP-22020-US Filter, Brake Transistor 2.0 7.0
2 ODP-22030-US Filter, Brake Transistor 3.0 10.5

OPTIDRIVE PLUS – 220/240V, 3 PHASE IN (1 PHASE 50% DERATING), 230V, 3-PHASE OUT
Size Model Special
Features		 Heavy Duty Rating
150%, 60 sec overload
HP Amps
3 ODP-32040-US Filter, Brake Transistor 4 14
3 ODP-32050-US Filter, DC Chokes, Brake Transistor 5 18
3 ODP-32075-US Filter, DC Chokes, Brake Transistor 7.5 25
4 ODP-42100-US Filter, Line Chokes, Brake Transistor 10 39
4 ODP-42150-US Filter, Line Chokes, Brake Transistor 15 46
4 ODP-42200-US Filter, Line Chokes, Brake Transistor 20 61
4 ODP-42250-US Filter, Line Chokes, Brake Transistor 25 72
5 ODP-52300-US Filter, Line Chokes, Brake Transistor 30 90
5 ODP-52400-US Filter, Line Chokes, Brake Transistor 40 110
5 ODP-52600-US Filter, Line Chokes, Brake Transistor 60 150
6 ODP-62750-US Filter, External Line Chokes, Brake Transistor 75 240
6 ODP-62100-US Filter, External Line Chokes, Brake Transistor 100 300

OPTIDRIVE PLUS – 380/480V, 3 PHASE IN (1 PHASE 50% DERATING), 380/460V, 3-PHASE OUT
Size Model Special
Features		 Heavy Duty Rating
150%, 60 sec overload
HP Amps
2 ODP-24010-US Filter, Brake Transistor 1 2.2
2 ODP-24020-US Filter, Brake Transistor 2 4.1
2 ODP-24030-US Filter, Brake Transistor 3 5.8
2 ODP-24050-US Filter, Brake Transistor 5 9.5
3 ODP-34075-US Filter, Brake Transistor 7.5 14
3 ODP-34100-US Filter, DC Chokes, Brake Transistor 10 18
3 ODP-34150-US Filter, DC Chokes, Brake Transistor 15 25
3 ODP-34200-US Filter, DC Chokes, Brake Transistor 20 29.5
4 ODP-44250-US Filter, Line Chokes, Brake Transistor 25 39
4 ODP-44300-US Filter, Line Chokes, Brake Transistor 30 46
4 ODP-44400-US Filter, Line Chokes, Brake Transistor 40 61
4 ODP-44500-US Filter, Line Chokes, Brake Transistor 50 72
5 ODP-54600-US Filter, Line Chokes, Brake Transistor 60 88
5 ODP-54750-US Filter, Line Chokes, Brake Transistor 75 110
5 ODP-54100-US Filter, Line Chokes, Brake Transistor 100 150
5 ODP-54150-US Filter, Line Chokes, Brake Transistor 150 180
6 ODP-64160-US Filter, External Line Chokes, Brake Transistor 160 202
6 ODP-64200-US Filter, External Line Chokes, Brake Transistor 200 240
6 ODP-64250-US Filter, External Line Chokes, Brake Transistor 250 300

OPTIDRIVE PLUS – 500/600V, 3 PHASE IN, 500/600V, 3 PHASE OUT
Size Model Special
Features		 Heavy Duty Rating
150%, 60 sec overload
HP Amps
2 ODP-25010-US Filter, Brake Transistor,
External Line Chokes Required (not included)		 1 1.7
2 ODP-25020-US Filter, Brake Transistor,
External Line Chokes Required (not included)		 2 3.1
2 ODP-25030-US Filter, Brake Transistor,
External Line Chokes Required (not included)		 3 4.1
2 ODP-25050-US Filter, Brake Transistor,
External Line Chokes Required (not included)		 5 6.1
3 ODP-25075-US Filter, Brake Transistor,
External Line Chokes Required (not included)		 7.5 9.0
3 ODP-35100-US Filter, DC Chokes, Brake Transistor 10 14
3 ODP-35150-US Filter, DC Chokes, Brake Transistor 15 18
3 ODP-35200-US Filter, DC Chokes, Brake Transistor 20 24
4 ODP-45300-US Filter, Line Chokes, Brake Transistor 30 39
4 ODP-45400-US Filter, Line Chokes, Brake Transistor 40 46
4 ODP-45600-US Filter, Line Chokes, Brake Transistor 60 62
