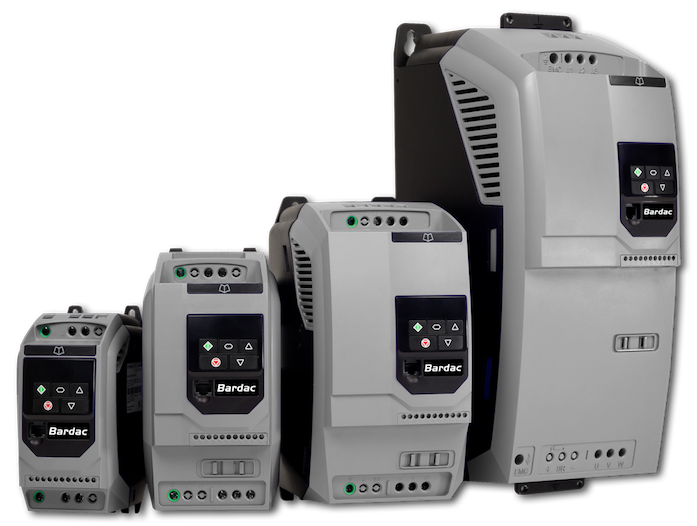

A GENERAL-PURPOSE DRIVE WITH ALL-PURPOSE FEATURES
The new E3 Series AC drive is designed to give the very best in value, performance and ease of use. Its innovative design incorporates flexibility, expandability and convenience that will work in many different applications throughout your plant.
- High-efficiency operation
- Selectable motor types: Standard Induction, AC PM, BLDC, Sync Reluctance
- Three selectable operating modes: Industrial, Fan and Pump
- Compact packaging
- Easy mechanical and electrical installation
- 50°C ambient rating
- 150% rating for 60 seconds, 175% for 2 seconds
- Simple 14 parameter basic set up
- Integral brake transistor, sizes 2, 3 and 4 (100% continuous rated)
- ModbusRTU serial port
- Standards: UL, C-UL, CE, C-Tick
Options:
- Remote keypad and display
- OPTISTICK plug in unit for fast up/down load of parameters
- smarty remote i/o, programmable control & Ethernet networking
- speedy programmable control & Ethernet networking
- savvyPanel smart touch screen operator station technology
- Integral RFI filter option
E3 ... very smart drives!
drive.web automation technology uses distributed control over Ethernet to provide cost effective systems integration for systems of any size or complexity.
GENERAL PURPOSE AC DRIVE
- Specifications -
Input Ratings
| Supply Voltage | 100 – 132 volts max, single phase (0.5 – 1.5HP) 180 – 264 volts max, 1-phase (0.5 – 3HP) 180 – 264 volts max, 3-phase (0.5 – 5HP) 342 – 528 volts max, 3-phase (1 – 30HP) |
| Supply Frequency | 48 – 62 Hz |
Output Ratings
| Power Output | 230V, 0.5 to 15HP 460V, 0.5 to 30HP |
| Output Frequency | 0 to 500Hz (Please call for special builds up to 2000Hz) |
Environment
| Temperature | IP20, operating, -10 to 50°C max, storage, -40 to 60°C |
| Altitude | 0-2000M, derate 1% per 100M above 1000M |
| Humidity | Up to 95%, non condensing |
| Ingress Protection | Basic IP20, Optional IP66 (NEMA 4X indoor rated) |
Control
| Mode | Voltage vector |
| PWM frequency | 4 to 32KHz (effective) |
| V/Hz ratio | Linear |
| Boost | Yes |
| Stop modes | Coast / ramp / DC brake |
| Skip frequency | One point, adjustable frequency band |
| Setpoint reference | 0-10VDC, 4-20mA, 20-4mA, 0-20mA, Keypad, Modbus |
| Preset speeds | 8 |
| PI control | Direct & analog input trim |
| Spin start | Starts safely into rotating motor |
| Accel/Decel | 0 – 600 seconds + Ramp stop decel 0 – 600 seconds |
Configurable i/o
| Input 1 | Programmable digital input |
| Input 2 | Programmable digital input |
| Input 3 | Configurable analog or digital input |
| Input 4 | Configurable analog or digital input |
| Output 1 | Configurable analog or digital output |
| Output 2 | Normally open relay contact 30VDC 5A, 250VAC 6A |
Protection
| Drive trip | Over/under volts, over current, external trip |
| Motor | Overload, over temperature, short circuit, ground fault |
| Trip memory | Last 4 trips stored |
- Model Numbers -
Standard IP20 Packages
with EMC Filter & DB transistor
115V, 1-PHASE IN, 230V, 3-PHASE MOTOR
| Model | HP | Amp | Frame Size |
| E3-110023-1012 | 0.5 | 2.3 | 1 |
| E3-110043-1012 | 1 | 4.3 | 1 |
| E3-210058-1042 | 1.5 | 5.8 | 2 |
230V, 1-PHASE IN, 230V, 3-PHASE MOTOR
| Model | HP | Amps | Frame Size |
| E3-120023-1012 | 0.5 | 2.3 | 1 |
| E3-120043-1012 | 1 | 4.3 | 1 |
| E3-120070-1012 | 2 | 7 | 1 |
| E3-220070-1042 | 2 | 7 | 2 |
| E3-220105-1042 | 3 | 10.5 | 2 |
| *E3-320153-1042 | 5 | 18 | 3 |
| * This unit not UL Listed | |||
230V, 3-PHASE IN, 230V, 3-PHASE MOTOR
| Model | HP | Amps | Frame Size |
| E3-120023-3012 | 0.5 | 2.3 | 1 |
| E3-120043-3012 | 1 | 4.3 | 1 |
| E3-120070-3012 | 2 | 7 | 1 |
| E3-220070-3042 | 2 | 7 | 2 |
| E3-220105-3042 | 3 | 10.5 | 2 |
| E3-320153-3042 | 5 | 18 | 3 |
460V, 3-PHASE IN, 460V, 3-PHASE MOTOR
| Model | HP | Amps | Frame Size |
| E3-140022-3012 | 1 | 2.2 | 1 |
| E3-140041-3012 | 2 | 4.1 | 1 |
| E3-240041-3042 | 2 | 4.1 | 2 |
| E3-240058-3042 | 3 | 5.8 | 2 |
| E3-240095-3042 | 5 | 9.5 | 2 |
| E3-340140-3042 | 7.5 | 14 | 3 |
| E3-340180-3042 | 10 | 18 | 3 |
| E3-340240-3042 | 15 | 24 | 3 |
| E3-440300-3042 | 20 | 30 | 4 |
| E3-440390-3042 | 25 | 39 | 4 |
| E3-440460-3042 | 30 | 46 | 4 |
NEMA 4X (IP66) Indoor Rated Packages
E3 Series General Purpose VFD
115V, 1-PHASE IN, 230V, 3-PHASE MOTOR
| Model | HP | Amp | Frame Size |
| E3-110023-101X or Y | 0.5 | 2.3 | 1 |
| E3-110043-101X or Y | 1 | 4.3 | 1 |
| E3-210058-104X or Y | 1.5 | 5.8 | 2 |
| X = Unswitched | Y = Switched | |||
| Ethernet networking & basic programmable control option dw220-4010 | |||
230V, 1-PHASE IN, 230V, 3-PHASE MOTOR
| Model | HP | Amp | Frame Size |
| E3-120023-101X or Y | 0.5 | 2.3 | 1 |
| E3-120043-101X or Y | 1 | 4.3 | 1 |
| E3-120070-101X or Y | 2 | 7 | 1 |
| E3-220070-104X or Y | 2 | 7 | 2 |
| E3-220105-104X or Y | 3 | 10.5 | 2 |
| *E3-320153-104X or Y | 5 | 15.3 | 3 |
| * This unit not UL Listed | |||
| X = Unswitched | Y = Switched | |||
| Ethernet networking & basic programmable control option dw220-4010 | |||
230V, 3-PHASE IN, 230V, 3-PHASE MOTOR
| Model | HP | Amp | Frame Size |
| E3-320153-304X or Y | 5 | 15 | 3 |
| X = Unswitched | Y = Switched | |||
| Ethernet networking & basic programmable control option dw220-4010 | |||
380/460V, 3-PHASE IN, 380/460V, 3-PHASE MOTOR
| Model | HP | Amp | Frame Size |
| E3-140022-301X or Y | 1 | 2.2 | 1 |
| E3-140041-301X or Y | 2 | 4.1 | 1 |
| E3-240041-304X or Y | 2 | 4.1 | 2 |
| E3-240058-304X or Y | 3 | 5.8 | 2 |
| E3-240095-304X or Y | 5 | 9.5 | 2 |
| E3-340140-304X or Y | 7.5 | 14 | 3 |
| E3-340180-304X or Y | 10 | 18 | 3 |
| X = Unswitched | Y = Switched | |||
| Ethernet networking & basic programmable control option dw220-4010 | |||
E3 SERIES - DIMENSIONS
| Frame Size | 1 | 1 | 2 | 2 | 3 | 3 | 4 |
| Protection | IP20 | NEMA 4X (IP66) |
IP20 | NEMA 4X (IP66) |
IP20 | NEMA 4X (IP66) |
IP20 |
| Height (ins) | 6.8” | 9.1″ | 8.7” | 10.1″ | 10.3” | 12.2″ | 16.6″ |
| Height (mm) | 173 | 232 | 221 | 257 | 261 | 310 | 420 |
| Width (ins) | 3.7″ | 6.4″ | 4.4″ | 7.4″ | 5.2″ | 8.3” | 6.7″ |
| Width (mm) | 83 | 161 | 110 | 188 | 131 | 211 | 171 |
| Depth (ins) | 4.9″ | 7.1″ | 5.9” | 7.4” | 6.9” | 9.9” | 8.4” |
| Depth (mm) | 123 | 179 | 150 | 188 | 175 | 252 | 212 |
| Weight (lbs) | 2.2 | 6.8 | 3.75 | 9 | 7 | 16.7 | 20.0 |
| Weight (kg) | 1.0 | 3.1 | 1.7 | 4.1 | 3.2 | 7.6 | 9.1 |
