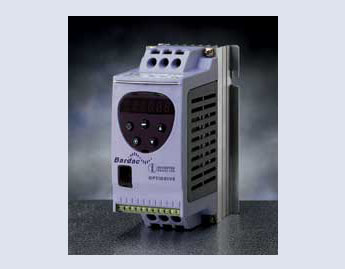

Optidrive E1

SINGLE PHASE AC MOTOR SPEED CONTROL UP TO 1.5 HP FOR VARIABLE TORQUE FAN & CENTRIFUGAL PUMP APPLICATIONS

  • Single Phase AC Induction Motor types:
    • Permanent Split Capacitor (PSC)
    • Shaded-Pole
  • Supply Options:
    • 110-120V single phase
    • 220-230V single phase
  • Rugged compact packaging
  • Silent running with 32KHz switching
  • Bipolar 12 bit analog input
  • Overload rating 150% for 60 seconds
  • DC injection braking
  • Easy installation and fast start up
  • Isolated control circuits
  • Programmable i/o
  • Hours run log 50°C ambient
  • Power loss ride through
  • Integral RFI filter option

Options:

  • Optifilter
  • Optibrake
  • Input chokes & output filters
  • 2ANIN alternate analog input selection
  • 2ROUT additional relay output
  • PICON simple PI control loop
 [optidrive_list]

IP 20 Enclosed Drive

110/120V, SINGLE PHASE INPUT, 115V, SINGLE PHASE OUTPUT
Size Model Dimensions
(H x W x D, lbs)		 Heavy Duty Rating
150%, 60 sec overload
HP Amps
1 ODE1-11050-US 6.1″ x 3.15″ x 5.1″, 2.5lbs 0.5 7.0
2 ODE1-21075-US 10.25″ x 3.95″ x 6.9″, 6lbs 0.75 10.5

220/240V, SINGLE PHASE INPUT, 230V, SINGLE PHASE OUTPUT
Size Model Dimensions
(H x W x D, lbs)		 Heavy Duty Rating
150%, 60 sec overload
HP Amps
1 ODE1-12050-US 6.1″ x 3.15″ x 5.1″, 2.5lbs 0.5 4.3
1 ODE1-12100-US 6.1″ x 3.15″ x 5.1″, 2.5lbs 1.0 7.0
2 ODE1-22150-US 10.25″ x 3.95″ x 6.9″, 6lbs 1.5 10.5

Nema 12 (IP 55) Enclosed Drive
Basic units (model suffix -i) available with:

  • Keypad
  • Display
 Switched units (model suffix -iS) available with:

  • Keypad
  • Display
  • Padlockable power switch
  • Speed Pot
  • Forward/Reverse switch

110/120V, SINGLE PHASE INPUT, 115V, SINGLE PHASE OUTPUT
Size Model Dimensions
(H x W x D, lbs)		 Heavy Duty Rating
150%, 60 sec overload
HP Amps
1 ODE1-11050-US -i -iS 7.9″ x 5.5″ x 6.4″, 6lbs 0.5 7.0
2 ODE1-21075-US -i -iS 12.2″ x 6.5″ x 7.0″, 10lbs 0.75 10.5

220/240V, SINGLE PHASE INPUT, 230V, SINGLE PHASE OUTPUT
Size Model Dimensions
(H x W x D, lbs)		 Heavy Duty Rating
150%, 60 sec overload
HP Amps
1 ODE1-12050-US -i -iS 7.9″ x 5.5″ x 6.4″, 6lbs 0.5 4.3
1 ODE1-12100-US -i -iS 7.9″ x 5.5″ x 6.4″, 6lbs 1.0 7.0
2 ODE1-22150-US -i -iS 12.2″ x 6.5″ x 7.0″, 10lbs 1.5 10.5
Optidrive E1
