Westinghouse Type M Frame 601 DC Magnetic Contactor

Ohio Contact replacement crane controls for Westinghouse Type M Frame 601 DC Magnetic Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

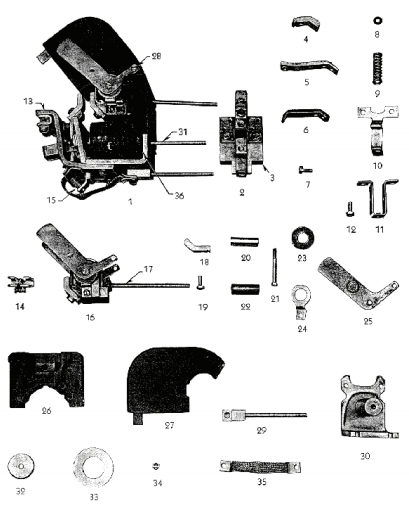

Westinghouse Type M Frame 601 DC Magnetic Contactor

Item No. OEM No. Description
1 1490232 Mechanical Parts - Front Connected
2 1486928 Armature Complete
3 1486917 Bare Armature
4 1486804 Contact
5 1486914 Connector
6 1486911 Contact Support
7 289960 Contact Bolt
8 1490291 Moving Contact Spring Shim
8 816395 Moving Contact Spring Washer
9 1486862 Moving Contact Spring
10 1486918 Aux. Bearing Bracket
11 1486912 Moving Contact Spring Support
12 164954 Spring Support Bolt
13 1745048 Armature Spring Bracket Complete
14 1486696 Arc Switch
15 1486705 Armature Spring
16 1486920 Adjusting Bar
17 1619512 Adj. Bar Screw
18 1486784 Stationary Contact w/Blowout Coil
18 1486804 Contact
19 1486886 Blowout Coil
21 289960 Contact Bolt
22 1486750 Blowout Coil Core
23 968986 Blowout Coil Core Bolt
24 1486758 Insulating Tube
25 1490236 Insulating Washer
25 1486762 Insulating Washer
26 1486754 Spring Washer
27 1486746 Pole Piece Left Hand
28 1486690 Base
29 1486654 Arc Box Complete
30 1449957 Arc Box Retaining Bolt
31 1486853 Copper Sleeve
32 1486923 Shunt Stud
33 1486903 Frame w/Core
34 1496906 Upper Frame
35 1486905 Lower Frame
36 59-359 Mounting Stud
37 1625814 Pole Face
38 1625816 Coil Washer
39 1437659 Coil Terminal
40 1486926 Shunt
41 30B4377G08 Coil, 550 VDC
41 1419564 Coil, 115 VDC
41 30B4377G02 Coil, 230 VDC.
41 30B4377G25 Coil
41 1419566 Coil
41 0B4377G13 Coil
41 1419565 Coil
41 30B4377G23 Coil
41 30B4377G24 Coil
0 1745060 Contact Kit
0 1486747 Pole Piece Right Hand
0 658C256G03 Coil
