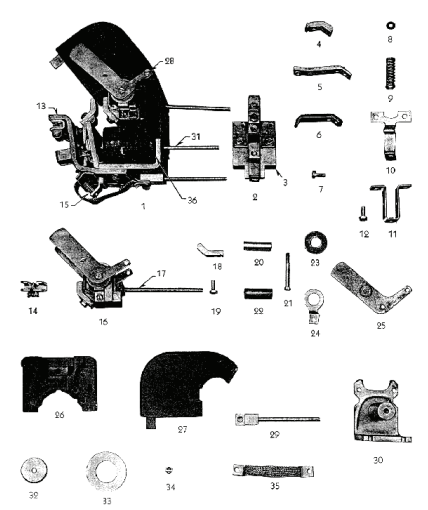

Ohio Contact replacement crane controls for Westinghouse Type M Frame 401 DC Magnetic Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 2 | 1490295 | Armature Complete |
| 3 | 1486827 | Bare Armature |
| 4 | 1486802 | Contact |
| 5 | 1486844 | Connector |
| 6 | 1486840 | Contact Support |
| 7 | 106149 | Contact Bolt |
| 8 | 1490289 | Spring Shim |
| 9 | 1486859 | Moving Contact Spring |
| 10 | 1486828 | Auxiliary Bearing Bracket |
| 11 | 1486820 | Moving Contact Spring Support |
| 12 | 288683 | Spring Support Bolt |
| 14 | 1486695 | Arc Switch |
| 15 | 1486704 | Armature Spring |
| 16 | 1486830 | Adjusting Bar |
| 17 | 1619510 | Adjusting Bar Screw |
| 18 | 1490288 | Stationary Contact w/Blowout Coil |
| 19 | 1486774 | Blowout Coil |
| 20 | 1486802 | Contact |
| 21 | 106149 | Contact Bolt |
| 22 | 1486748 | Blowout Coil Core |
| 23 | 442007 | Blowout Coil Core Bolt |
| 24 | 1486756 | Insulating Tube |
| 25 | 1486760 | Insulating Washer |
| 26 | 1486752 | Spring Washer |
| 27 | 1486742 | Pole Piece, Left Hand |
| 0 | 1486743 | Pole Piece, Right Hand |
| 28 | 1486688 | Base |
| 29 | 1486648 | Arc Box Complete |
| 30 | 716666 | Arc Box Retaining Bolt |
| 31 | 1486851 | Copper Sleeve |
| 33 | 1486799 | Frame w/Core |
| 34 | 1486797 | Upper Frame |
| 35 | 1486798 | Lower Frame |
| 36 | 559401 | Mounting Stud |
| 37 | 1486833 | Pole Face |
| 38 | 1486996 | Coil Washer |
| 39 | 1437659 | Coil Terminal |
| 41 | 1419546 | Operating Coil, 550 Volt |
| 41 | 1754375 | Operating Coil, 250 Volt |
| 41 | 30B4375G25 | Operating Coil, 125 Volt |
| 41 | 1419544 | Operating Coil, 115 Volt |
| 41 | 1419545 | Operating Coil, 230 Volt |
| 0 | 1754375 | Operating Coil, 250 Volt |
| 0 | 106149 | Contact Bolt |
| 0 | 1745057 | Contact Kit |
