Square D No. 50 DC Youngstown Limit Stop Duplex Type FFG Series A

Ohio Contact replacement crane controls for Square D No. 50 DC Youngstown Limit Stop Duplex Type FFG Series A. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

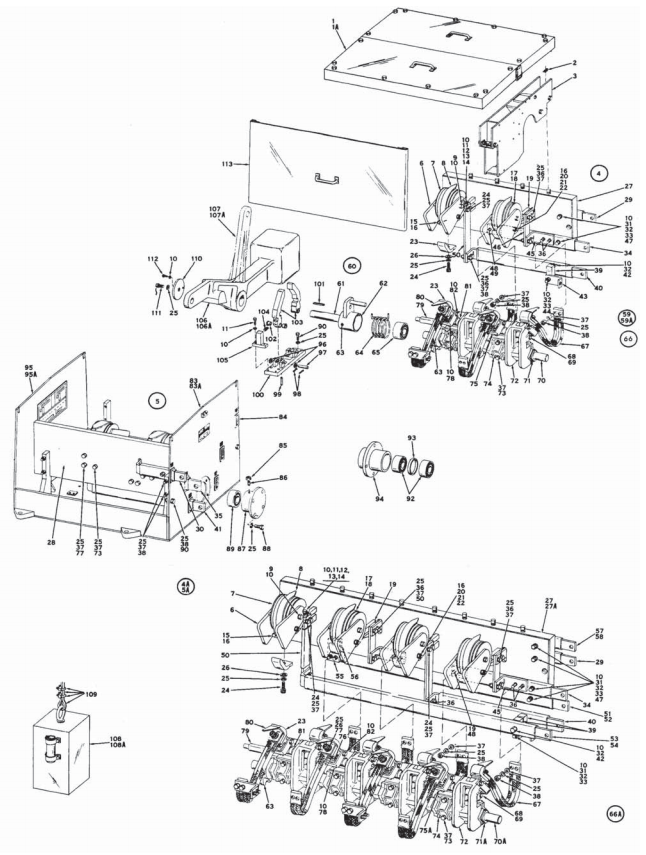

Square D No. 50 DC Youngstown Limit Stop Duplex Type FFG Series A

Item No. OEM No. Description
1 51068-084-50 Top Cover
2 RS-130 Special Cotter
3 51068-046-51 Arc Chute
4 51068-087-51 Stationary Contact Assembly
5 51068-087-50 Stationary Contact Assembly
6 51068-039-50 Blowout Ear
7 50512-001-27 Blowout Insulating Washer
8 51068-038-50 Blowout Guard
9 21401-24280 Cap Screw
10 23701-00240 Pl. Lk. Washer
11 21401-24400 H.I. Cap Screw
12 23601-00240 Washer
13 50512-051-01 Spacer
14 50512-001-25 Insulating Washer
15 21601-20240 Cap Screw
16 23701-00200 Pl. Lk. Washer
17 50502-776-11 Blowout Core
18 50512-052-16 Insulator for Blowout Core
19 51068-036-50 Contact Bracket Assembly
20 50502-103-12 Stud
21 51068-040-01 Blowout Ear Spacer
22 23002-00200 Nut
23 50005-015-01 Contact Tip
24 21601-28480 Cap Screw
25 23701-00280 Pl. Lock Washer
26 23601-00282 Washer
27 51068-089-50 Base, R.H.
28 51068-088-50 Base, L.H.
29 51068-042-50 Bus Bar, R.H.
30 51068-043-50 Bus Bar, L.H.
31 21401-24740 Cap Screw
32 23003-00240 Jam Nut
33 23002-00240 H.I. Nut
34 51068-022-50 Bus Bar, R.H.
35 51068-022-51 Bus Bar, L.H.
36 21401-28560 Cap Screw
37 23601-00280 Washer
38 23002-00280 Nut
39 51068-014-50 Bus Bar Support
40 51068-041-50 Bus Bar, R.H.
41 51068-041-51 Bus Bar, L.H.
42 21401-24480 H.I. Cap Screw
43 51068-009-01 Bus Support
44 21401-24660 H. St. Cap
45 51068-022-03 Bus Bar
46 51068-044-01 Bus Bar
47 23003-00280 Jam Nut
48 21401-28800 Cap Screw
49 23002-00320 Nut
50 51068-041-01 Bus Bar
51 51068-090-50 Bus Bar, R.H.
52 51068-090-51 Bus Bar, L.H.
53 51068-041-52 Bus Bar, R.H.
54 51068-041-53 Bus Bar, L.H.
55 51068-066-01 Bus Bar
56 50502-408-07 Spacer
57 51068-091-50 Bus Bar, R.H.
58 51068-092-50 Bus Bar, L.H.
59 51068-085-50 Contact Shaft Assembly
60 51068-027-50 Trip Assembly
61 51068-028-01 Shaft
62 51068-029-01 Operating Arm
63 24209-32780 Pin
64 51068-030-01 Torsion Spring
65 FP-24H24 Bearing
66 51068-086-50 Contact Shaft Assembly
67 51068-020-50 Connector Assembly
68 L-6056 Auxiliary Arm Pin
69 LT-3394 Set Screw
70 51068-017-02 Shaft
71 50512-251-25 Shaft Insulator
72 51068-018-50 Contact Arm Assembly
73 21401-28680 Cap Screw
74 51068-019-01 Contact Arm Clamp
76 50502-601-34 Contact Sping
77 21401-28660 Cap Screw
78 23003-00240 Jam Nut
79 51068-026-50 Rocker Arm Assembly
80 51068-025-01 Arc Horn
81 51068-021-01 Auxiliary Arm
82 21401-24240 H.I. Cap Screw
83 51068-010-51 Rear Panel Assembly
84 51202-062-01 Gasket
85 23003-00200 Hex Jam Nut
86 22003-20241 Set Screw
87 51068-012-01 Bearing Housing
88 21402-29480 Cap Screw
89 FP-24H24 Bearing
90 21401-28400 Cap Screw
91 21401-28760 Cap Screw
92 FP-24H25 Bearing
93 50502-053-21 Bearing Spacer
94 51068-011-01 Front Bearing Housing
95 51068-082-50 Frame Assembly
96 23602-13209 Washer
97 50502-276-31 Pivot Pin
98 24201-06320 Cotter Pin
99 24209-32480 Roll Pin
100 51068-013-50 Base Assembly
101 50502-407-22 Key
102 FP-24B35 Oilite Bearing
103 51068-031-01 Latch Arm
104 50502-601-37 Larch Arm Spring
105 51068-045-01 Stop Plate
106 51068-053-51 Weight Arm Asssembly
107 51068-059-51 Weight Arm Asssembly
108 51068-055-51 Suspended Weight Asssembly
109 51068-056-50 Wire Rope & Fittings
110 50502-005-21 Washer
111 X-2319 Cap Screw
112 X-2222 Special Cap Screw
113 51068-051 Side Cover Assembly
