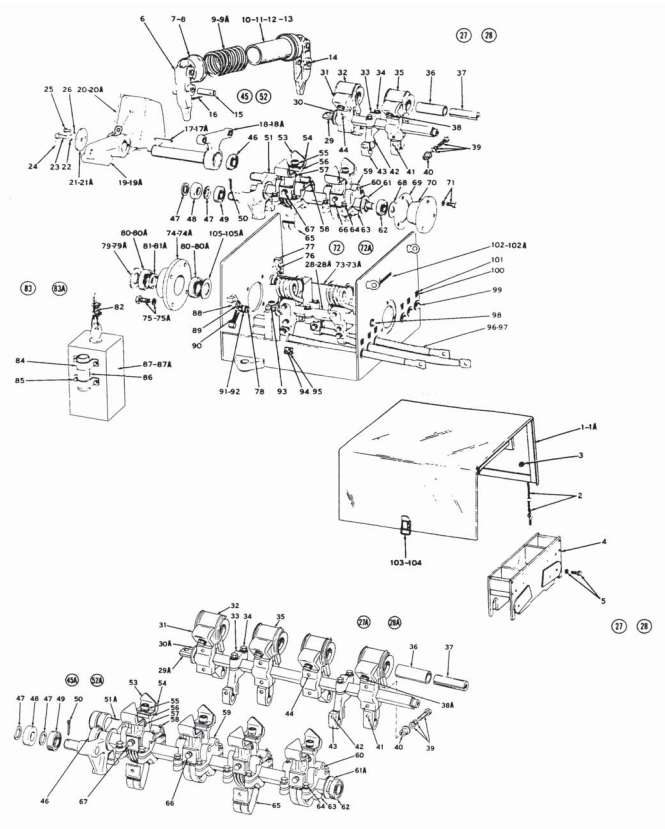

Ohio Contact replacement crane controls for Square D No. 30 Youngstown Limit Switch Type DG Series A. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 51067-028-50 | Hood |
| 2 | X-2127-A | Hood Chain |
| 3 | 23001-00200 | Nut |
| 4 | 51067-010-50 | Arc Barrier |
| 5 | 21401-20200 | H.I. Cap Screw |
| 6 | X-2118-A | Trip Lever |
| 7 | X-2281-A | Spring Seat |
| 8 | FP-24C19 | Oilite Bearing |
| 9 | X-3187 | Operating Spring |
| 10 | X-2280-A | Spring Retainer |
| 11 | X-2280-A | Spring Retainer |
| 12 | X-2280-A | Spring Retainer |
| 13 | X-2280-A | Spring Retainer |
| 14 | X-2117-A | Trip Lever |
| 15 | X-2179 | Pin |
| 16 | 24201-08480 | Cotter Pin |
| 17 | X-2194 | Key |
| 18 | X-2313-A | Arm |
| 19 | X-3316-A | Weight Arm |
| 20 | X-3318-A | Weight Arm |
| 21 | X-2324 | Cap |
| 22 | 23701-00280 | Pl. Lock Washer |
| 23 | X-2319 | Cap Screw |
| 25 | X-2222 | Special Cap Screw |
| 26 | 23701-00240 | Pl. Lock Washer |
| 27 | 51067-029-50 | Stat. Contact Shaft Assy. R. H. |
| 28 | 51067-029-51 | Stat. Contact Shaft Assy. L. H. |
| 29 | X-3150 | Stationary Contact Shaft |
| 30 | X-3228-A | Shaft Insulator |
| 31 | 50005-017-01 | Contact |
| 32 | X-3208-A | Blowout Coil & Contact Bracket |
| 33 | X-3141 | Clamp |
| 34 | 23601-00240 | Washer |
| 34 | 21401-24640 | Cap Screw |
| 34 | 23701-00240 | Pl. Lock Washer |
| 35 | X-3209-A | Blowout Coil & Contact Bracket |
| 36 | 50512-052-06 | Blowout Core Insulator |
| 37 | 51067-014-01 | Blowout Core |
| 38 | 21401-28400 | Cap Screw |
| 38 | 23601-00280 | Washer |
| 39 | 21401-24640 | Cap Screw |
| 39 | 23701-00240 | Pl. Lock Washer |
| 39 | 23601-00240 | Washer |
| 40 | 24201-08480 | Cotter Pin |
| 40 | X-3186 | Insulating Bushing |
| 41 | 23701-00240 | Pl. Lock Washer |
| 41 | 23601-00240 | Washer |
| 41 | 21401-24640 | Cap Screw |
| 42 | 21401-24660 | H. St. Cap |
| 42 | 23701-00240 | Pl. Lock Washer |
| 42 | 23601-00240 | Washer |
| 43 | X-3145 | Terminal Bracket |
| 44 | 23701-00240 | Pl. Lock Washer |
| 44 | 21401-24680 | Cap Screw |
| 44 | 23601-00240 | Washer |
| 45 | 51067-030-50 | Moveable Contact Shaft Assy. |
| 46 | FP-24K11 | Bearing |
| 47 | X-2332 | Washer |
| 48 | FP-24C42 | Roller |
| 49 | FP-24K11 | Bearing |
| 51 | X-3313-A | Rocker Arm Assembly |
| 52 | 51067-032-50 | Movable Contact Assembly |
| 53 | 51067-008-01 | Arc Horn |
| 54 | 50005-017-01 | Contact |
| 55 | 23601-00280 | Washer |
| 55 | 23701-00280 | Pl. Lock Washer |
| 56 | X-3139 | Auxiliary Arm |
| 57 | X-3188 | Contact Spring |
| 58 | 24201-08401 | Cotter Pin |
| 59 | X-3138 | Auxiliary Arm Bracket |
| 60 | X-3180 | Auxiliary Arm Pin |
| 61 | X-3229-A | Shaft Insulator |
| 62 | FP-24K11 | Bearing |
| 63 | X-3140 | Clamp |
| 64 | 23701-00240 | Pl. Lock Washer |
| 64 | 21401-24480 | H.I. Cap Screw |
| 65 | X-3109-A | Connector |
| 66 | 21401-24400 | H.I. Cap Screw |
| 66 | 23701-00240 | Pl. Lock Washer |
| 67 | 23701-00240 | Pl. Lock Washer |
| 67 | 21401-24320 | Cap Screw |
| 70 | X-2316 | Bearing Housing |
| 71 | 23701-00240 | Pl. Lock Washer |
| 71 | 21401-24320 | Cap Screw |
| 72 | 51067-015-50 | Frame Assembly |
| 73 | 51067-015-51 | Frame |
| 74 | X-2343 | Bearing Housing |
| 75 | 21402-29400 | Socket Head Cap |
| 75 | 23701-00280 | Pl. Lock Washer |
| 76 | 24201-06320 | Cotter Pin |
| 77 | X-2120-A | Locking Arm, right side |
| 78 | 24201-06240 | Cotter Pin |
| 79 | X-2318 | Washer |
| 80 | FP-24K10 | Bearing |
| 81 | X-2317 | Spacer |
| 82 | X-2125-A | Wire Rope |
| 83 | X-3126-A | Suspended Weight Assembly |
| 84 | X-2159 | Clamp |
| 85 | 21401-24320 | Cap Screw |
| 85 | 23701-00240 | Pl. Lock Washer |
| 86 | X-2167 | Rope Guide |
| 87 | X-3129-A | Weight |
| 88 | X-2119-A | Locking Arm, left side |
| 89 | X-2170 | Washer, for Locking Arm |
| 90 | X-2276 | Spring |
| 91 | X-2173 | Washer, for Locking Arm Roller |
| 92 | X-2175 | Roller, for Locking Arm |
| 93 | 23701-00280 | Pl. Lock Washer |
| 93 | 21402-29400 | Socket Head Cap |
| 94 | 29499-00800 | Hood Fastner Strike |
| 95 | 21417-16200 | Self-Tapping Screw |
| 96 | 51067-012-50 | Lead |
| 98 | 23701-00240 | Pl. Lock Washer |
| 98 | 21401-24320 | Cap Screw |
| 99 | X-3164 | Grommet |
| 101 | 21515-08060 | Drive Screw |
| 103 | 29499-00500 | Spring Catch |
| 104 | 24101-12100 | Rivet |
| 105 | X-2337 | Shim |
