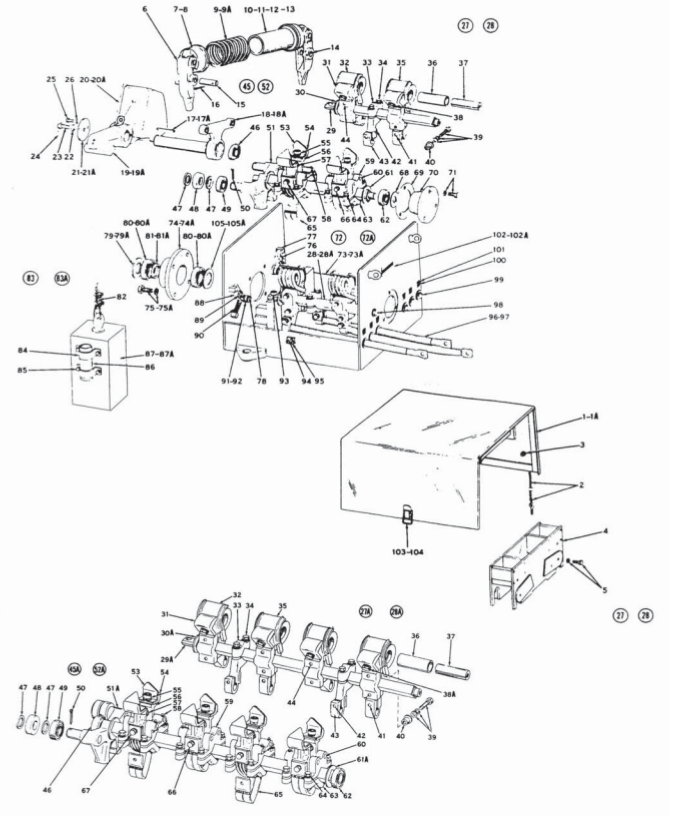

Ohio Contact replacement crane controls for Square D No. 30 Youngstown Limit Switch Type DDG Series A. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 51067-034-50 | Hood |
| 2 | X-2127-A | Hood Chain |
| 3 | 23701-00200 | Pl. Lk. Washer |
| 3 | 23001-00200 | Nut |
| 4 | 51067-010-50 | Arc Barrier |
| 5 | 21401-20200 | H.I. Cap Screw |
| 6 | X-2118-A | Trip Lever |
| 7 | X-2281-A | Spring Seat |
| 8 | FP-24C19 | Oilite Bearing |
| 11 | X-2280-A | Spring Retainer |
| 14 | X-2117-A | Trip Lever |
| 15 | X-2179 | Pin |
| 16 | 24201-08480 | Cotter Pin |
| 17 | X-2261 | Key |
| 18 | X-3328-A | Operating Arm |
| 19 | X-3336-A | Weight Arm |
| 20 | X-3338-A | Weight Arm |
| 21 | X-3332 | Cap Washer |
| 22 | 23701-00280 | Pl. Lock Washer |
| 23 | X-2319 | Cap Screw |
| 25 | X-2222 | Special Cap Screw |
| 26 | 23701-00240 | Pl. Lk. Washer |
| 27 | 51067-036-50 | Stationary Contact Shaft Assy. |
| 28 | 51067-036-51 | Stationary Contact Shaft Assy. |
| 29 | X-3243 | Shaft |
| 30 | X-3257-A | Shaft Insulator |
| 31 | 50005-017-01 | Contact |
| 32 | X-3208-A | Blowout Coil & Contact Bracket |
| 33 | X-3141 | Clamp |
| 34 | 23601-00240 | Washer |
| 34 | 21401-24640 | Cap Screw |
| 35 | X-3209-A | Blowout Coil & Contact Bracket |
| 36 | 50512-052-06 | Blowout Core Insulator |
| 37 | 51067-014-01 | Blowout Core |
| 38 | 23601-00280 | Washer |
| 38 | 21401-28400 | Cap Screw |
| 40 | X-3186 | Insulating Bushing |
| 42 | 21401-24660 | H. St. Cap |
| 43 | X-3145 | Terminal Bracket |
| 44 | 21401-24680 | Cap Screw |
| 45 | 51067-035-50 | Movable Contact Shaft Assey. |
| 46 | FP-24K11 | Bearing |
| 47 | X-2332 | Washer |
| 48 | FP-24C42 | Roller |
| 51 | X-3329-A | Rocker Arm Assembly |
| 52 | 51067-032-50 | Movable Contact Assembly |
| 53 | 51067-008-01 | Arc Horn |
| 56 | X-3139 | Auxiliary Arm |
| 57 | X-3188 | Contact Spring |
| 58 | 24201-08401 | Cotter Pin |
| 59 | X-3138 | Auxiliary Arm Bracket |
| 60 | X-3180 | Auxialiary Arm Pin |
| 61 | X-3258-A | Shaft Insulator |
| 63 | X-3140 | Clamp |
| 64 | 21401-24480 | H.I. Cap Screw |
| 65 | X-3109-A | Connector |
| 66 | 21401-24400 | H.I. Cap Screw |
| 67 | 21401-24320 | Cap Screw |
| 68 | X-2334 | Washer |
| 69 | X-3354 | Shim |
| 70 | X-2316 | Bearing Housing |
| 72 | 51067-023-50 | Frame Assembly |
| 73 | 51067-023-51 | Frame |
| 74 | X-3330 | Bearing Housing |
| 75 | 21402-29480 | Cap Screw |
| 76 | 24201-06320 | Cotter Pin |
| 77 | X-2120-A | Locking Arm |
| 78 | 24201-06240 | Cotter Pin |
| 79 | X-3339 | Washer |
| 80 | FP-24K12 | Bearing |
| 81 | X-3340 | Spacer |
| 82 | X-2125-A | Wire Rope |
| 83 | X-3254-A | Suspended Weight Assembly |
| 84 | X-2159 | Clamp |
| 86 | X-2167 | Rope Guide |
| 87 | X-3253-A | Weight |
| 88 | X-2119-A | Locking Arm, left side |
| 89 | X-2170 | Washer, for Locking Arm |
| 90 | X-2276 | Spring |
| 91 | X-2173 | Washer, for Locking Arm Roller |
| 92 | X-2175 | Roller, for Locking Arm |
| 93 | 21402-29400 | Socket Head Cap |
| 94 | 29499-00800 | Hood Fastener Strike |
| 95 | 21417-16200 | Self-Tapping Screw |
| 96 | 51067-012-50 | Lead |
| 97 | 51067-012-51 | Cable |
| 99 | X-3164 | Grommet |
| 100 | 203 | Identification Plate |
| 101 | 21515-08060 | Drive Screw |
| 103 | 29499-00500 | Spring Catch |
| 104 | 24101-12100 | Rivet |
| 105 | 50502-005-32 | Shim |
