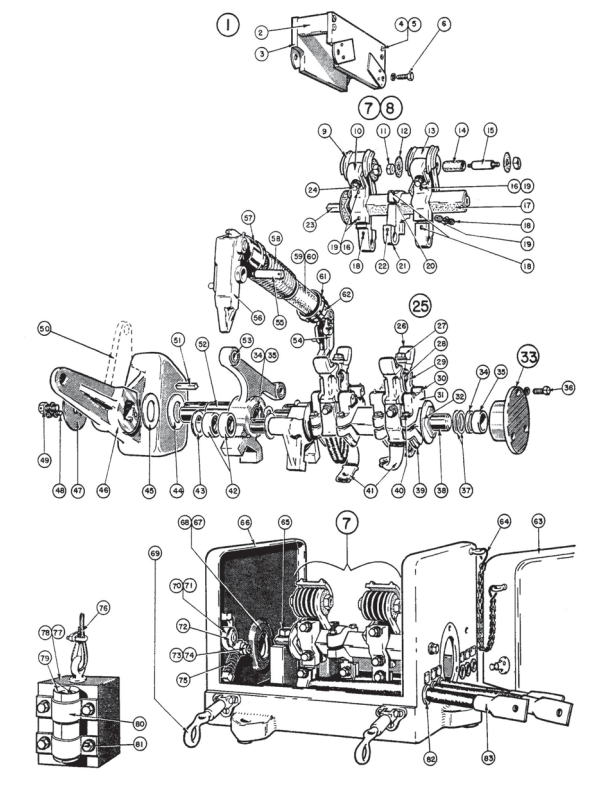

Ohio Contact replacement crane controls for Square D No. 30 Youngstown Limit Switch. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | X-3108-A | Assembled Arc Barrier |
| 2 | X-3185 | Spacer |
| 3 | X-3107-A | Arc Barrier Only |
| 4 | FP-23A12 | Binding Post |
| 5 | FP-23A36 | Binding Screw |
| 7 | X-3102-A | Stationary Contact Shaft |
| 8 | X-3103-A | Stationary Contact Shaft |
| 9 | X-3105-A | Blowout Coil & Contact Bracket |
| 10 | LT-4787 | Contact Tip |
| 12 | X-2184 | Insulating Washer |
| 13 | X-3106-A | Blowout Coil & Contact Bracket |
| 14 | X-3183 | Blowout Core Insulator |
| 15 | X-3156 | Blowout Core |
| 17 | X-3228-A | Shaft Insulator |
| 19 | X-3186 | Insulating Bushing |
| 20 | X-3141 | Clamp |
| 21 | X-3145 | Terminal Bracket |
| 23 | X-3150 | Stationary Contact Shaft |
| 25 | X-3104-A | Movable Contact Assembly |
| 26 | LT-4787 | Contact Tip |
| 28 | X-3188 | Contact Spring |
| 29 | X-3139 | Auxiliary Arm |
| 30 | X-3180 | Auxiliary Arm Pin |
| 31 | X-3138 | Auxiliary Arm Bracket |
| 32 | X-3229-A | Shaft Insulator |
| 33 | X-2220-A | Bearing Housing |
| 35 | FP-24C21 | Oilite Bearing |
| 37 | X-2099 | Spacers |
| 38 | X-3116-A | Rocker Arm |
| 39 | X-3140 | Clamp |
| 41 | X-3109-A | Connector |
| 42 | X-2289-A | Roller |
| 44 | X-2172 | Thrust Washer |
| 45 | X-2224 | Thrust Washer |
| 46 | X-3128-A | Weight Arm |
| 47 | X-2200 | Cap |
| 48 | X-2222 | Special Cap Screw |
| 49 | X-2221 | Special Cap Screw |
| 51 | X-2194 | Key |
| 52 | X-2115-A | Operating Arm |
| 53 | FP-24C19 | Oilite Bearing |
| 54 | X-2117-A | Trip Lever |
| 56 | X-2118-A | Trip Lever |
| 57 | X-2281-A | Spring Seat |
| 58 | X-3187 | Operating Spring |
| 59 | X-2280-A | Sprng Retainer |
| 60 | X-2277 | Tube |
| 61 | X-2278 | Tube Support |
| 65 | X-2198 | Special Cap Screw |
| 67 | FP-24C20 | Oilite Bearing |
| 68 | FP-51A11 | Sealing Ring |
| 70 | X-2120-A | Locking Arm |
| 71 | X-2119-A | Locking Arm left side |
| 72 | X-2170 | Washer for Locking Arm |
| 73 | X-2175 | Roller for Locking Arm |
| 74 | X-2173 | Washer/Locking Arm Roller |
| 75 | X-2276 | Spring |
| 83 | X-3110-A | Lead |
