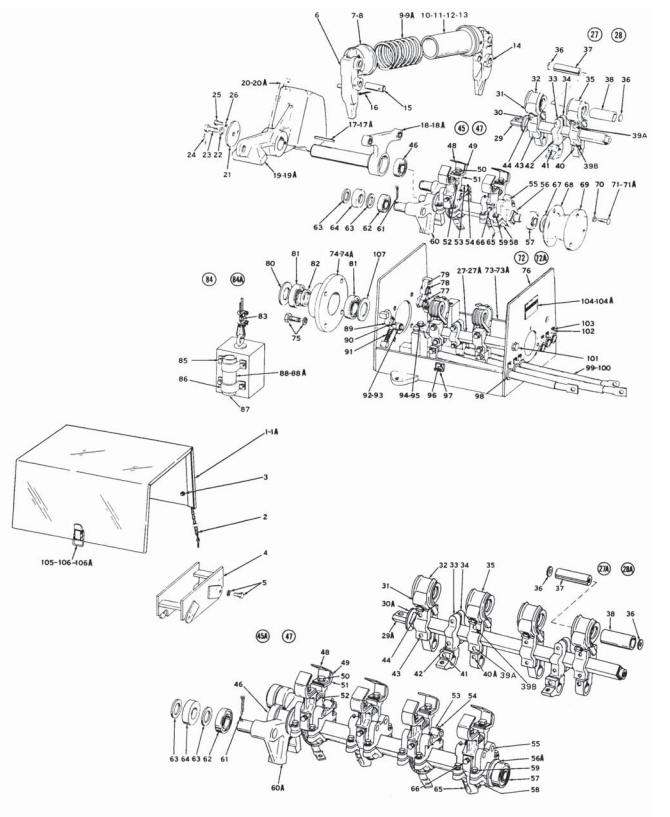

Ohio Contact replacement crane controls for Square D No. 20 AC/DC Youngstown Limit Switch Type CG Series B. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 51066-034-50 | Hood |
| 2 | 51066-045-50 | Hood Chain |
| 3 | 23001-00200 | Nut |
| 3 | 23701-00200 | Pl. Lock Washer |
| 4 | 51066-010-50 | Barrier |
| 5 | 23701-00200 | Pl. Lock Washer |
| 5 | 21401-20200 | H.I. Cap Screw |
| 6 | X-2118-A | Trip Lever |
| 7 | X-2281-A | Spring Seat |
| 8 | 29005-40241 | Bearing |
| 9 | X-2187 | Operating Spring |
| 11 | X-2280-A | Spring Retainer |
| 14 | X-2117-A | Trip Lever |
| 15 | X-2179 | Pin |
| 16 | 24201-08480 | Cotter Pin |
| 17 | X-2194 | Key |
| 18 | X-2313-A | Arm |
| 19 | X-2329-A | Weight Arm |
| 20 | X-2331-A | Weight Arm |
| 21 | X-2324 | Cap |
| 22 | 23701-00280 | Pl. Lock Washer |
| 23 | X-2319 | Cap Screw |
| 25 | X-2222 | Special Cap Screw |
| 26 | 23701-00240 | Pl. Lock Washer |
| 27 | 51066-029-50 | Stationary Contact Shaft |
| 28 | 51066-029-51 | Stationary Contact Shaft |
| 29 | X-2150 | Shaft |
| 30 | X-2228-A | Shaft Insulator |
| 31 | 50005-010-01 | Tip |
| 32 | 51066-030-51 | Blowout Coil & Contact Bracket |
| 33 | X-2145 | Terminal Bracket |
| 34 | X-2141 | Clamp |
| 35 | 51066-030-52 | Blowout Coil & Contact Bracket |
| 36 | 50512-001-21 | Insulating Washer |
| 37 | 51066-014-01 | Blowout Core |
| 38 | 50512-052-05 | Blowout Core Insulator |
| 39 | 21401-22680 | Cap Screw |
| 39 | 21401-22640 | Cap |
| 39 | 23601-00220 | Washer |
| 39 | 23701-00220 | Lock Washer |
| 39 | 21401-24560 | Cap |
| 40 | 23601-00240 | Washer |
| 40 | 21401-24400 | H.I. Cap Screw |
| 41 | 23601-00240 | Washer |
| 41 | 23701-00240 | Pl. Lock Washer |
| 42 | 21401-22660 | Cap Screw |
| 44 | 21401-24280 | Cap Screw |
| 45 | 51066-28-50 | Movable Contact Shaft Assy. |
| 46 | 29002-16300 | Bearing |
| 47 | 51066-030-50 | Movable Contact Assembly |
| 48 | 51066-008-01 | Arc Horn |
| 49 | 50005-010-01 | Tip |
| 50 | 23701-00240 | Pl. Lock Washer |
| 50 | 23601-00220 | Washer |
| 51 | X-2139 | Auxiliary Arm |
| 52 | X-2188 | Contact Spring |
| 53 | X-2138 | Auxiliary Arm Bracket |
| 54 | 24201-06320 | Cotter Pin |
| 55 | X-2180 | Auxiliary Arm Pin |
| 56 | X-2229-A | Shaft Insulator |
| 57 | 29002-16300 | Bearing |
| 58 | X-2140 | Clamp |
| 59 | 23701-00220 | Lock Washer |
| 59 | 21401-22400 | H.I. Cap Screw |
| 60 | X-2314-A | Rocker Arm Assembly |
| 61 | 24201-08480 | Cotter Pin |
| 62 | 29002-16300 | Bearing |
| 63 | X-2332 | Washer |
| 64 | 29005-63640 | Roller |
| 65 | X-2109-A | Connector |
| 66 | 23701-00240 | Pl. Lock Washer |
| 66 | 21401-24320 | Cap Screw |
| 67 | X-2334 | Washer |
| 68 | X-3354 | Shim |
| 69 | X-2316 | Bearing Housing |
| 71 | 21401-24240 | H.I. Cap Screw |
| 71 | 21401-24280 | Cap Screw |
| 72 | 51066-037-50 | Frame Assembly |
| 73 | 51066-037-51 | Frame |
| 74 | X-2315 | Bearing Housing |
| 75 | 23701-00280 | Pl. Lock Washer |
| 75 | 21402-29400 | Socket Head Cap |
| 77 | 24201-06240 | Cotter Pin |
| 78 | 24201-06320 | Cotter Pin |
| 79 | X-2120-A | Locking Arm, right side |
| 80 | X-2318 | Washer |
| 81 | 29002-37320 | Bearing |
| 82 | X-2317 | Spacer |
| 89 | X-2119-A | Locking Arm, left side |
| 90 | X-2170 | Washer, for Locking Arm |
| 91 | X-2276 | Spring |
| 92 | X-2173 | Washer, for Locking Arm Roller |
| 93 | X-2175 | Roller, for Locking Arm |
| 94 | 21402-29400 | Socket Head Cap |
| 96 | 29499-00800 | Hood Fastner Strike |
| 97 | 21417-16120 | Self-Tapping Screw |
| 98 | X-2163 | Grommet |
| 99 | 51066-012-50 | Lead |
| 103 | 21008-04060 | Drive Screw |
| 105 | 29499-00500 | Spring Catch |
| 106 | 24101-12080 | Rivets |
