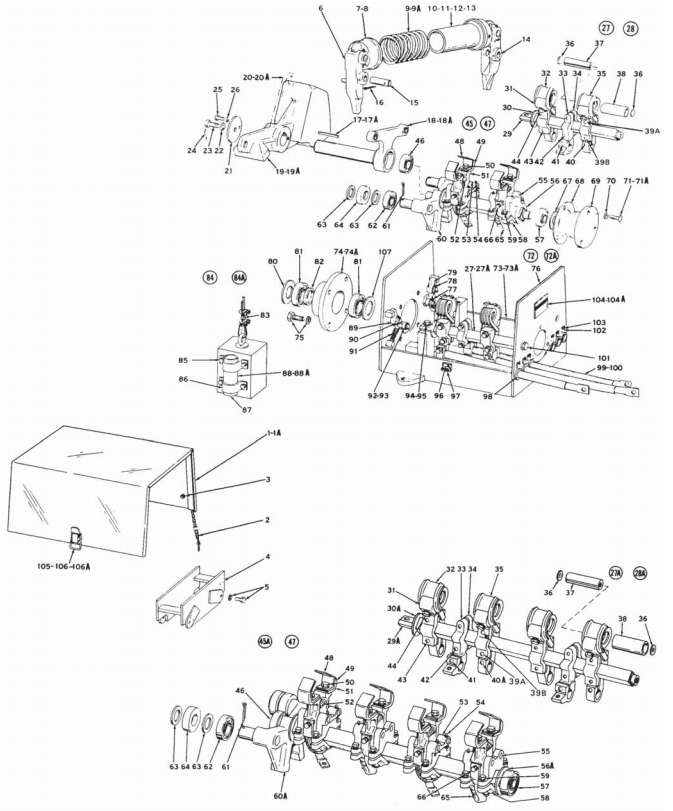

Ohio Contact replacement crane controls for Square D No. 20 AC/DC Youngstown Limit Switch Type CCG Series B. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 51066-034-51 | Hood |
| 2 | 51066-045-50 | Hood Chain |
| 3 | 23001-00200 | Nut |
| 3 | 23701-00200 | Pl. Lock Washer |
| 4 | 51066-010-50 | Barrier |
| 5 | 21401-20200 | H. I. Cap Screw |
| 5 | 23701-00200 | Pl. Lock Washer |
| 6 | X-2118-A | Trip Lever |
| 7 | 21401-24280 | Cap Screw |
| 7 | X-2281-A | Spring Seat |
| 8 | 29005-40241 | Bearing |
| 9 | X-3187 | Operating Spring |
| 10 | X-2280-A | Spring Retainer |
| 11 | X2280-A | Spring Retainer |
| 12 | X-2280-A | Spring Retainer |
| 13 | X-2280-A | Spring Retainer |
| 14 | X-2117-A | Trip Lever |
| 15 | X-2179 | Pin |
| 16 | 24201-08480 | Cotter Pin |
| 17 | X-2261 | Key |
| 18 | X-2341-A | Operating Arm Complete |
| 19 | X-2349-A | Weight Arm |
| 20 | X-2351-A | Weight Arm |
| 21 | X-2324 | Cap Screw |
| 22 | 23701-00280 | Pl. Lock Washer |
| 23 | X-2319 | Cap Screw |
| 25 | X-2222 | Special Cap Screw |
| 26 | 23701-00240 | Pl. Lock Washer |
| 27 | 51066-032-50 | Stat. Contact Shaft Assy, R.H. |
| 28 | 51066-032-51 | Stat. Contact Shaft Assy, L.H. |
| 29 | X-2243 | Shaft |
| 30 | X-2257-A | Shaft Insulator |
| 31 | 50005-010-01 | Tip |
| 32 | 51066-030-51 | Blowout Coil & Contact Bracket |
| 33 | X-2145 | Terminal Bracket |
| 34 | X-2141 | Clamp |
| 35 | 51066-030-52 | Blowout Coil & Contact Bracket |
| 36 | 50512-001-21 | Insulating Washer |
| 37 | 51066-014-01 | Blowout Core |
| 38 | 50512-052-05 | Blowout Core Insulator |
| 39 | 21401-24560 | Cap |
| 39 | 21401-22640 | Cap |
| 39 | 21401-22680 | Cap Screw |
| 39 | 23601-00220 | Washer |
| 39 | 23701-00220 | Lock Washer |
| 40 | 23701-00240 | Pl. Lock Washer |
| 40 | 23601-00240 | Washer |
| 41 | 21401-22640 | Cap |
| 41 | 23601-00240 | Washer |
| 41 | 23701-00240 | Pl. Lock Washer |
| 42 | 23601-00220 | Washer |
| 42 | 23701-00220 | Lock Washer |
| 42 | 21401-22660 | Cap Screw |
| 43 | 23701-00220 | Lock Washer |
| 43 | 23601-00220 | Washer |
| 44 | 23701-00240 | Pl. Lock Washer |
| 44 | 21401-24280 | Cap Screw |
| 45 | 51066-031-50 | Movable Contact Shaft Assy |
| 46 | 29002-16300 | Bearing |
| 47 | 51066-030-50 | Movable Contact Assembly |
| 48 | 51066-008-01 | Arc Horn |
| 49 | 21401-24280 | Cap Screw |
| 49 | 50005-010-01 | Tip |
| 51 | X-2139 | Auxiliary Arm |
| 52 | X-2188 | Contact Spring |
| 53 | X-2138 | Auxiliary Arm Bracket |
| 54 | 24201-06320 | Cotter Pin |
| 55 | X-2180 | Auxiliar Arm Pin |
| 56 | A-2258-A | Shaft Insulator |
| 57 | 29002-16300 | Bearing |
| 58 | X-2140 | Clamp |
| 59 | 21401-22400 | H.I. Cap Screw |
| 60 | X-2342-A | Rocker Arm Assembly |
| 61 | 24201-08480 | Cotter Pin |
| 62 | 29002-16300 | Bearing |
| 63 | X-2332 | Washer |
| 64 | 29005-63640 | Roller |
| 65 | X-2109-A | Connector |
| 66 | 21401-24320 | Cap Screw |
| 67 | X-2334 | Washer |
| 68 | X-3354 | Shim |
| 69 | X-2316 | Bearing Housing |
| 72 | 51066-041-50 | Frame Assembly |
| 73 | 51066-041-51 | Frame |
| 74 | X-2343 | Bearing Housing |
| 75 | 21402-29400 | Socket Head Cap |
| 75 | 23701-00280 | Pl. Lock Washer |
| 77 | 24201-06240 | Cotter Pin |
| 78 | 24201-06320 | Cotter Pin |
| 79 | X-2120-A | Locking Arm, right side |
| 80 | X-2318 | Washer |
| 81 | 29002-37320 | Bearing |
| 82 | X-2317 | Spacer |
| 89 | X-2119-A | Locking Arm, left side |
| 90 | X-2170 | Washer, for Locking Arm |
| 91 | X-2276 | Spring |
| 92 | X-2173 | Washer, for Locking Arm Roller |
| 93 | X-2175 | Roller, for Locking Arm |
| 94 | 21402-29400 | Socket Head Cap |
| 96 | 29499-00800 | Hood Fastner Strike |
| 97 | 21417-16120 | Self-Tapping Screw |
| 98 | X-2163 | Grommet |
| 99 | 51066-012-50 | Lead |
| 100 | 51066-012-51 | Cable |
| 101 | 21401-24320 | Cap Screw |
| 103 | 21008-04060 | Drive Screw |
| 105 | 29499-00500 | Spring Catch |
| 106 | 24101-12100 | Rivet |
