Cutler Hammer P-200A Safety Limit Stop

Ohio Contact replacement crane controls for Cutler Hammer P-200A Safety Limit Stop. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

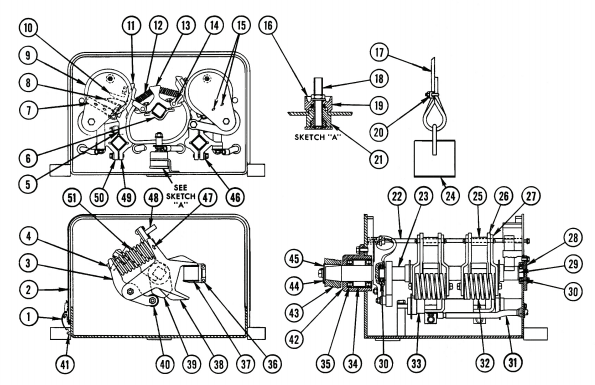

Cutler Hammer P-200A Safety Limit Stop

Item No. OEM No. Description
1 55-1396 Clamp
2 47-11733 Cover
3 24-4448 Cam Lever
4 29-1459-2 Tube
5 29-2957-2 Spacer
6 55-1539 Clamp
7 56-3018-2 Spacer
8 73-1241 Arc Guard
9 62-109-14 Blowout Complete
10 23-1225 Contact
10 916-199 Lockwasher
10 911-5890Z Screw
11 24-4441-2 Contact Lever
12 69-721 Spring
13 79-6284 Support
13 13-3962 Adjusting Pin
14 13-441-4 Shaft
15 813-159 Pin
16 80-2464 Insulated Mounting Complete
17 86-1456 Hoist Rope
18 14-403-30 Stud
19 32-239-20 O Ring
19 56-2736 Molded Insulator
20 999-119 Elliptical Clip
20 3433-3 Crosby Clip
21 56-2759 Insulator
22 61-1394 Locking Rod Complete
22 69-2350 Spring
22 13-3187-12 Spring Pin
23 13-3879-8 Insulation Assembly (movable)
23 13-131-3 Key
23 13-3879-2 Movable Shaft Complete
24 14148H169A Weight
25 56-1288-9 Spacer
25 916-682Z Lockwasher
25 814-1685 Stud
25 1216-4 Washer
25 915-24F3 Nut
26 4973-3 Arc Shield
27 3462-183F1 Pole Piece
28 20-1048 Bearing Cap
29 16-357 Shim Washer
30 20-1051 Sealed Bearing
31 25-2006 Connector
32 56-1111-13 Insulating Tube
32 9-460-450 Blowout Coil, DC
32 29-2607-9 Core
32 16-687-6 Insulating Washer
32 9-460-445 Blowout Coil, AC
33 13-3879-7 Insulation Assembly
33 13-3879 Stationary Shaft Complete
34 29-1954-6 Spacer
35 20-1052 Sealed Bearing
36 55-464 Bumper Holder
37 18-1398-2 Bumper
38 24-4443 Stop Lever
39 54-6121 Cam
40 20-1031-2 Bearing
41 55-1397 Clamp
42 20-1047 Bearing Cap
43 14148H172A Weight Lever, LH
43 14148H170A Weight Lever Straight
43 14148H171A Weight Lever, RH
44 47-11734 Locking Plate
45 16-645-21 Washer
46 56-1174-17 Insulator
47 13-840 Pin
48 18-1491 Stop Block
49 55-1533 Clamp
50 55-1534 Clamp
51 69-1832 Spring
