Cutler Hammer P-200 Safety Limit Stop

Ohio Contact replacement crane controls for Cutler Hammer P-200 Safety Limit Stop. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

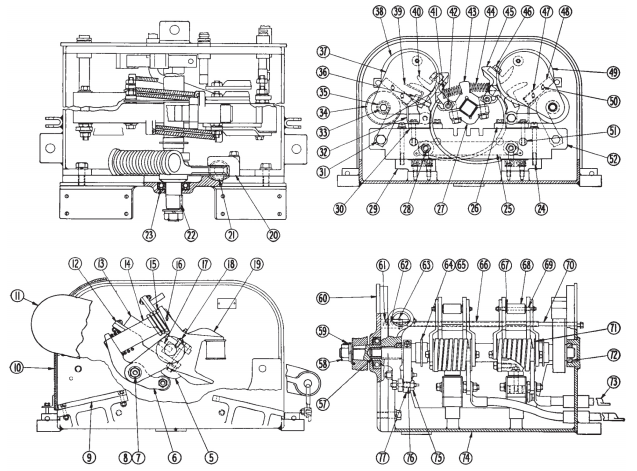

Cutler Hammer P-200 Safety Limit Stop

Item No. OEM No. Description
5 54-829 Cam
6 20-253 Needle Bearing
6 24-1611 Cam Lever
7 11-788 Screw
8 20-299 Needle Bearing
9 18-1187 Stop Block
10 47-1994 Cover
11 24-3607 Weight Lever (Straight)
12 18-1198 Stop Block
13 18-1196 Stop Post
14 29-1459-2 Tube
15 69-1832 Spring
16 13-840 Pin
17 13-3186-1 Roll Pin
18 11-796 Headless Set Screw
19 24-1533 Stop Lever
20 55-464 Bumper Holder
21 18-1083 Bumper
22 13-1403 Key
23 20-755 Seal Bearing
24 911-4872Z Screw
25 25-861 Connector
26 79-4304 Contact Bracket
27 55-1609 Clamp
28 815-1128 Nut
28 1314-845 Stud For 1.5" Panel
28 911-5912Z Screw
28 816-1005 Washer
29 17-1544 Mounting Block
30 19-359 Shim
31 911-5890Z Screw
32 79-4305 Stop Bracket
33 29-2607-9 Core
34 9-460-232 Blowout Coil
35 56-1111-13 Insulating Tube
36 916-199 Lockwasher
36 911-5892Z Contact Screw
37 3462-183F1 Pole Piece
38 62-109-14 Blowout Complete
39 73-1268 Arc Guard
40 1321-829 Contact Segment
41 13-3962 Adjusting Pin
42 13-3961 Shaft
43 3479-236F1 Contact Support
44 69-1831 Spring
45 24-1615 Contact Lever with Connector
47 55-173 Protecting Clip
48 29-1537 Spacer
49 4973-3. Arc Shield Side Piece
50 813-159 Pin
51 15-330-2 Nut
52 81-2513 Base
57 29-1543-29 Bronze Bearing
58 15-594-3 Nut
58 916-2042 Lockwasher
59 47-1672 Locking Plate
60 17-5625 End Plate
61 18-548 Post
62 69-2350 Spring
63 13-3187-5 Roll Pin
64 13-1466 Shaft
65 13-1466-3 Shaft Insulation
66 29-550 Insulator Tube
69 829-505 Spacer
70 61-439 Rod
71 16-687-6 Insulating Washer
72 29-1543-30 Bearing
73 25-1474 Connector
75 11-789 Screw
77 29-1465 Roller
78 54-3538-2 Weight
