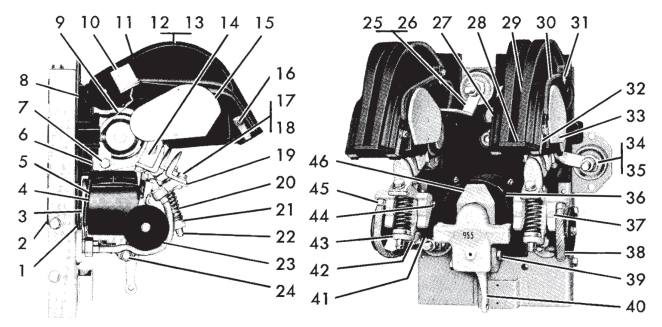

Ohio Contact replacement crane controls for Cutler Hammer No. 955 300 Amp Two-Pole DC Ltl Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 56-3693 | Insulator |
| 2 | 56-2698-2 | Insulator |
| 3 | 17-7275 | Magnet Frame |
| 4 | Coil | Give # on Coil |
| 5 | 16-2315 | Washer |
| 5 | 16-2316 | Washer Top |
| 6 | 16-1879 | Shim Washer |
| 7 | 911-373 | Long Hex Screw |
| 8 | 17-7589 | Moulded Base |
| 9 | 52-880 | Latch |
| 10 | 52-879 | Hasp |
| 11 | 62-454-2 | Arc Shield (Left Hand) |
| 12 | 62-564-3 | Left Hand Blowout |
| 13 | 62-564-8 | Arc Shield Complete |
| 14 | 18-1410 | Contact Post w/Copper Contact |
| 15 | 19-945-6 | Strap |
| 15 | 62-451 | Inner Arc Shield |
| 15 | 62-452 | Pole Piece |
| 16 | 62-561 | Arc Horn |
| 16 | 915-322Z | Nut |
| 17 | 23-435 | Contact |
| 17 | 23-1042-2 | Contact w/Silver Insert |
| 18 | 911-5646Z | Contact Mounting Screw |
| 19 | 24-4175-3 | L.H. Contact Lever Complete |
| 20 | 69-58 | Spring |
| 21 | 916-225 | Shim Washer |
| 22 | 13-587 | Adjusting Pin |
| 22 | 29-541 | Spring Ring |
| 23 | 16-840-21 | Insulating Washer |
| 24 | 13-3862 | Pin |
| 25 | 9-460-449 | Blowout Coil Left Hand |
| 26 | 25-2095 | Left Hand Connector |
| 27 | 62-564-6 | Right Hand Blowout Complete |
| 28 | 73-1632 | Arc Deflector |
| 29 | 62-454 | Arc Shield (Right Hand) |
| 30 | 25-1927-5 | Connector |
| 31 | 19-1248-3 | Clamp |
| 32 | 79-9197-3 | Bracket |
| 33 | 811-1664 | Lg. Flathead Screw |
| 33 | 916-101 | Tooth Lockwasher |
| 34 | 9-460-437 | Blowout Coil |
| 35 | 25-1816 | Connector (used w/o Blowout) |
| 36 | 51-979 | Core |
| 37 | 24-4175-7 | R.H. Contact Lever Complete |
| 38 | 24-4175-6 | R.H. Contact Lever W/Connector |
| 39 | 13-3859-4 | Shaft |
| 40 | 18-1576 | Stop |
| 40 | 24-4689 | Armature Lever |
| 41 | 29-1336-3 | Insulating Tube |
| 42 | 55-217 | Clamp |
| 43 | 24-4699 | Contact Lever |
| 44 | 13-4330-2 | Shaft |
| 44 | 28-42 | Retaining Ring |
| 45 | 24-4175-4 | L.H. Contact Lever W/Connector |
| 46 | 55-1553 | Coil Clamp |
