Ohio Contact replacement crane controls for Cutler Hammer No. 945 300 Amp Two-Pole DC Ltl Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

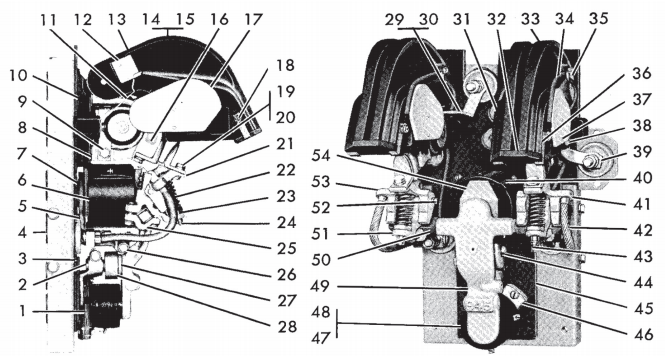

| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 19-1367 | Shim |
| 2 | 11-1062 | Adjusting Screw |
| 3 | 56-3692 | Insulator |
| 4 | 56-2698 | Insulator |
| 5 | 17-7275 | Magnet Frame |
| 6 | Coil | Give # on Coil |
| 7 | 16-2315 | Washer |
| 8 | 16-1879 | Shim Washer |
| 9 | 911-373 | Screw |
| 10 | 17-7589 | Moulded Base |
| 11 | 52-880 | Latch |
| 12 | 52-879 | Hasp |
| 13 | 62-454-2 | Arc Shield (Left Hand) |
| 14 | 62-564-3 | Left Hand Blowout |
| 15 | 62-564-8 | Arc Shield Complete |
| 16 | 18-1410 | Contact Post w/Copper Contact |
| 17 | 62-452 | Pole Piece |
| 18 | 62-561 | Arc Horn |
| 19 | 23-1042-2 | Contact, Silver Faced |
| 19 | 23-435 | Contact |
| 20 | 911-5646Z | Contact Mounting Screw |
| 21 | 24-4175-3 | L.H. Contact Lever Complete |
| 22 | 69-58 | Spring |
| 23 | 916-225 | Shim Washer |
| 24 | 13-587 | Adjusting Pin |
| 25 | 55-217 | Clamp |
| 26 | 13-3862 | Pin |
| 27 | 911-679 | Adjusting Screw |
| 28 | 1315-1 | Shunt Nut |
| 29 | 9-460-449 | Blowout Coil Left Hand |
| 30 | 25-2095 | Left Hand Connector |
| 31 | 62-564-6 | Right Hand Blowout Complete |
| 32 | 73-1632 | Arc Defl ector |
| 33 | 62-454 | Arc Shield (Right Hand) |
| 34 | 25-1927-5 | Connector |
| 35 | 19-1248-3 | Clamp |
| 36 | 79-9197-3 | Bracket |
| 37 | 811-1664 | Lg. Flathead Screw |
| 38 | 9-460-437 | Bowout Coil |
| 39 | 25-1816 | Connector |
| 40 | 51-979 | Core |
| 41 | 24-4175-7 | R.H. Contact Lever Complete |
| 42 | 24-4175-6 | R.H. Contact Lever W/Connector |
| 43 | 56-3693 | Insulator |
| 44 | 13-3859-4 | Shaft |
| 45 | 56-3674 | Insulator |
| 46 | 17-7625 | Base |
| 47 | Holdout Coil | Give # on Coil |
| 48 | 18-1342-2 | Hold Out Coil Post |
| 49 | 24-4690 | Armature Lever |
| 50 | 29-735 | Insulating Tube |
| 51 | 24-4699 | Contact Lever |
| 52 | 13-4330-2 | Shaft |
| 53 | 24-4175-4 | L.H. Contact Lever W/Connector |
| 54 | 55-1553 | Coil Clamp |
