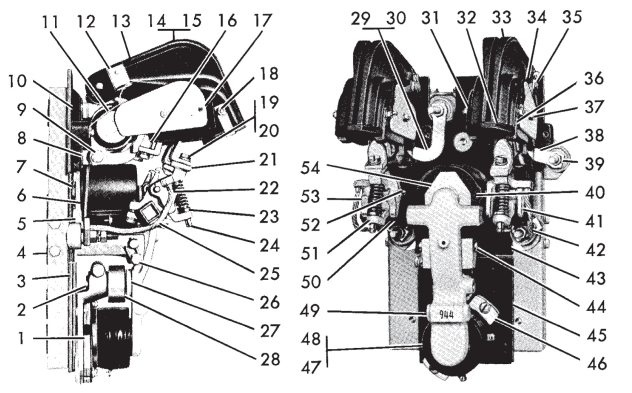

Ohio Contact replacement crane controls for Cutler Hammer No. 944 150 Amp Two-Pole DC Ltl Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 19-1367 | Shim |
| 2 | 11-1062 | Adjusting Screw |
| 2 | 13-1079-17 | Pin |
| 3 | 56-3692 | Insulator |
| 4 | 56-2698 | Insulator |
| 5 | 17-7193 | Magnet Frame |
| 6 | Coil | Give # on Coil |
| 7 | 16-2315 | Washer |
| 8 | 16-2359 | Shim Washer |
| 9 | 911-5607Z | Hex Screw |
| 9 | 916-198 | Lockwasher |
| 10 | 17-7117 | Moulded Base |
| 11 | 52-877 | Latch |
| 12 | 52-876 | Hasp |
| 13 | 62-439 | Arc Shield L.H. |
| 14 | 62-563-3 | L.H. Blowout, Complete |
| 15 | 62-563-2 | Arc Shield, Complete |
| 16 | 18-1376 | Contact Post |
| 17 | 19-989-20 | Strap |
| 17 | 62-465 | Pole Piece |
| 18 | 62-431 | Arc Horn |
| 19 | 23-717 | Contact |
| 19 | 23-813 | Contact, Silver Faced |
| 20 | 911-5606Z | Contact Screw |
| 20 | 916-198 | Lockwasher |
| 21 | 24-4119-3 | L.H. Contact Lever, Complete |
| 22 | 69-432 | Spring |
| 23 | 16-320 | Washer .016 Thick |
| 24 | 13-734-2 | Adjusting Pin |
| 24 | 29-531 | Retaining Ring |
| 25 | 55-573 | Clamp |
| 26 | 13-3860 | Pin |
| 26 | 911-5446Z | Screw |
| 27 | 911-679 | Adjusting Screw |
| 28 | 1315-1 | Shunt Nut |
| 29 | 9-460-448 | Blowout Coil, Left Hand |
| 30 | 25-2099 | Connector |
| 31 | 62-563 | Blowout, Complete |
| 32 | 73-1631 | Arc Deflector |
| 33 | 62-432 | Arc Shield R.H. |
| 34 | 25-1927-2 | Connector |
| 35 | 19-1248-3 | Clamp |
| 36 | 79-9197-6 | Bracket |
| 37 | 11-863 | Screw |
| 38 | 9-460-434 | Blowout Coil |
| 39 | 25-1790 | Connector |
| 40 | 51-896 | Core |
| 41 | 24-4119 | Contact Lever Complete |
| 42 | 24-4119-2 | Contact Lever w/Connector |
| 43 | 56-3691 | Insulator |
| 44 | 13-3859-3 | Shaft |
| 45 | 56-3674 | Insulator |
| 46 | 17-7625 | Base |
| 47 | Holdout Coil | Give # on Coil |
| 48 | 18-1342-2 | Holdout Coil Post |
| 49 | 24-4688-3 | Armature Lever |
| 50 | 29-721 | Insulating Tube |
| 51 | 24-860 | Contact Lever |
| 52 | 13-4330 | Shaft |
| 52 | 29-531 | Retaining Ring |
| 53 | 24-4119-4 | L.H. Contact Lever w/Connector |
| 54 | 55-1451 | Coil Clamp |
