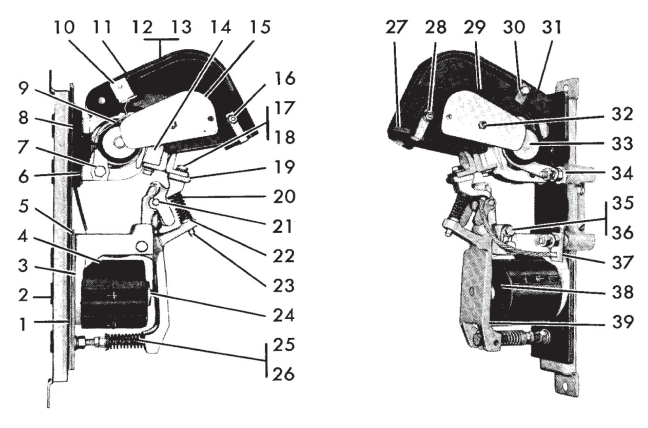

Ohio Contact replacement crane controls for Cutler Hammer No. 924 150 Amp Spring Closed DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 56-3679 | Insulator |
| 2 | 56-2698 | Insulator |
| 3 | 17-7193 | Magnet Frame |
| 4 | Coil | Give # on Coil |
| 4 | 56-3482 | Insulating Washer |
| 5 | 56-3678 | Insulator |
| 6 | 16-2359 | Shim Washer |
| 7 | 911-5607Z | Hex Screw |
| 8 | 17-7117 | Moulded Base |
| 9 | 52-877 | Latch |
| 10 | 52-876 | Hasp |
| 11 | 62-439 | Arc Shield, L.H. |
| 12 | 62-563 | B/O Complete |
| 13 | 62-563-2 | Arc Shield |
| 14 | 18-1376 | Contact Post |
| 15 | 19-989-20 | Strap |
| 15 | 62-465 | Pole Piece |
| 16 | 62-431 | Arc Horn |
| 17 | 23-717 | Contact |
| 17 | 23-813 | Contact, Silver Faced |
| 18 | 911-5606FZ | Contact Screw |
| 18 | 916-198 | Lockwasher |
| 19 | 24-4119 | Contact Lever Complete |
| 20 | 69-432 | Spring |
| 21 | 13-4330 | Shaft |
| 21 | 29-531 | Retaining Ring |
| 22 | 16-320 | Washer .016 Thick |
| 23 | 13-734 | Adjusting Pin |
| 23 | 29-531 | Retaining Ring |
| 24 | 51-888 | Core |
| 25 | 69-2112 | Spring |
| 26 | 49-1204-27 | Spring Gland |
| 26 | 915-220 | Jam Nut |
| 26 | 915-1004Z | Nut |
| 26 | 18-1492 | Stop |
| 27 | 73-1631 | Arc Deflector |
| 28 | 79-9197-6 | Bracket |
| 29 | 25-1927-2 | Connector |
| 30 | 19-1248-3 | Clamp |
| 32 | 11-863 | Screw |
| 33 | 9-460-434 | Blowout Coil |
| 34 | 25-1790 | Connector |
| 35 | 13-3860 | Pin |
| 35 | 911-5446Z | Screw |
| 35 | 916-641Z | Washer |
| 35 | 916-682Z | Lockwasher |
| 36 | 13-3859-3 | Shaft |
| 37 | 24-4119-2 | Contact Lever |
| 38 | 55-1451 | Coil Clamp |
| 39 | 24-4153-2 | Armature Lever |
| 39 | 51-202 | Core Plug |
