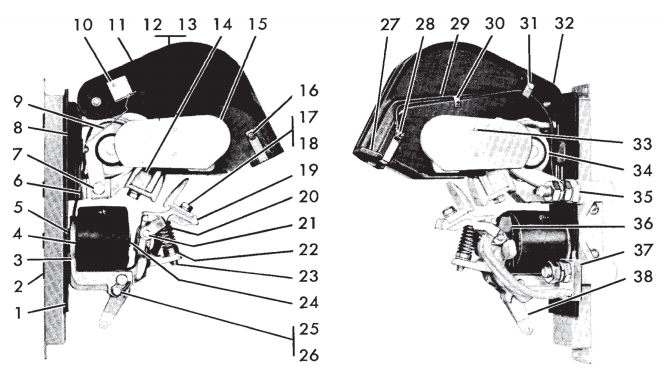

Ohio Contact replacement crane controls for Cutler Hammer No. 916 600 Amp Single Pole DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 56-3686 | Insulator |
| 3 | 17-7275 | Magnet Frame |
| 4 | Coil | Give # on Coil |
| 5 | 16-2315 | Washer |
| 5 | 16-2316 | Washer (Top) |
| 6 | 16-1879 | Shim Washer |
| 7 | 911-5890Z | Screw |
| 8 | 17-7340 | Moulded Base |
| 9 | 52-853 | Latch |
| 10 | 52-879 | Hasp |
| 12 | 62-565 | Blowout Complete |
| 13 | 62-565-3 | Arc Shield Complete |
| 14 | 18-1417 | Contact Post |
| 15 | 62-457 | Pole Piece |
| 15 | 62-459 | Inner Arc Shield |
| 15 | 19-945-7 | Strap |
| 16 | 62-561-2 | Arc Horn |
| 17 | 23-1288 | Contact w/Silver Insert |
| 17 | 23-4026 | Contact |
| 18 | 911-5888Z | Contact Mounting Screw |
| 19 | 24-4205 | Contact Lever Complete |
| 20 | 69-2376 | Spring |
| 21 | 29-1264 | Retaining Ring |
| 21 | 13-4330-3 | Shaft |
| 22 | 916-1164Z | Shim Washer .016 Thick |
| 23 | 29-541 | Spring Ring |
| 23 | 13-593 | Adjusting Pin |
| 24 | 51-979 | Core |
| 25 | 13-3859-4 | Shaft |
| 26 | 911-5606Z | Contact Screw |
| 26 | 13-3862 | Pin |
| 27 | 73-1633 | Arc Deflector |
| 28 | 79-9197-4 | Bracket |
| 29 | 25-1927-4 | Connector |
| 30 | 79-4180-26 | Clamp |
| 31 | 19-1248-3 | Clamp |
| 33 | 11-863 | Screw |
| 34 | 9-460-438 | Blowout Coil |
| 35 | 25-1850 | Connector |
| 36 | 55-1553 | Coil Clamp |
| 37 | 24-4205-2 | Contact Lever w/Connector |
| 38 | 18-1576 | Stop |
| 38 | 24-4206-2 | Armature Lever |
