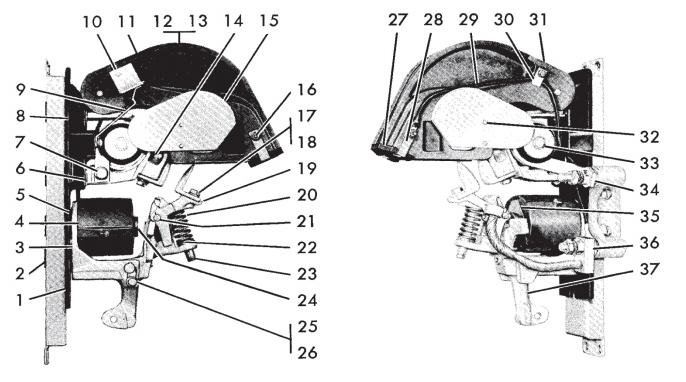

Ohio Contact replacement crane controls for Cutler Hammer No. 915 300 Amp Single Pole DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 56-3682 | Insulator |
| 2 | 56-2698 | Insulator |
| 2 | 16-1837 | Disc |
| 2 | 56-2698-2 | Insulator |
| 3 | 17-7193 | Magnet Frame |
| 4 | 9-1589-1 | Coil, 230 VDC |
| 5 | 16-2315 | Washer |
| 6 | 16-1879 | Shim Washer |
| 7 | 911-373 | Long Hex Screw |
| 8 | 17-7589 | Molded Base |
| 9 | 52-880 | Latch |
| 10 | 52-879 | hasp |
| 11 | 62-454-2 | Arc Shield (Left Hand) |
| 12 | 62-564 | B/O Complete |
| 13 | 62-564-2 | Arc Shield, Complete |
| 14 | 18-1410 | Contact Post w/Copper Contact |
| 15 | 62-452 | Pole Piece |
| 16 | 62-561 | Arc Horn |
| 17 | 23-435 | Contact |
| 17 | 23-1042-2 | Silver Faced Contact |
| 18 | 911-5646Z | Contact Mounting Screw |
| 19 | 24-4175 | Contact Lever Complete |
| 20 | 69-58 | Spring |
| 21 | 13-4330-2 | Shaft with Clips |
| 21 | 28-42 | Retaining Ring |
| 22 | 916-1164Z | Shim Washer |
| 22 | 16-319 | Shim Washer |
| 22 | 916-225 | Shim Washer |
| 23 | 13-587 | Adjusting Pin |
| 23 | 29-541 | Spring Ring |
| 24 | 51-896 | Core |
| 25 | 13-3859-3 | Shaft |
| 26 | 13-3860 | Pin |
| 26 | 911-5446Z | Screw |
| 26 | 916-682Z | Lockwasher |
| 26 | 916-641Z | Washer |
| 27 | 73-1632 | Arc Deflector |
| 28 | 79-9197-3 | Bracket |
| 29 | 25-1927-3 | Connector |
| 30 | 19-1248-3 | Clamp |
| 31 | 62-454 | Arc Shield (Right Hand) |
| 32 | 916-101 | Tooth Lockwasher |
| 32 | 811-1664 | Lg. Flathead Screw |
| 33 | 9-460-437 | Blowout Coil |
| 34 | 916-231 | Lockwasher |
| 34 | 911-373 | Long Hex Screw |
| 34 | 25-1816 | Connector |
| 35 | 55-1451 | Coil Clamp |
| 36 | 24-4175-2 | Contact Lever w/Connector |
| 37 | 8-1576 | Stop |
| 37 | 24-4177 | Armature Lever |
