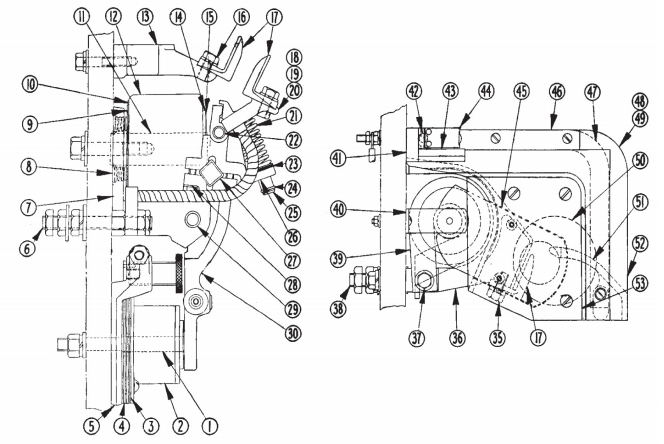

Ohio Contact replacement crane controls for Cutler Hammer No. 582 300 Amp Double Pole DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 618-351 | Post |
| 2 | Coil | Give # on Coil |
| 3 | 19-1367 | Shim |
| 4 | 19-1366 | Shim |
| 5 | 17-2134-2 | Base |
| 6 | 1314-844 | Stud for Panel |
| 7 | 17-207-16 | Magnet Frame |
| 9 | 916-2921Z | Steel Washer |
| 10 | 16-1551-2 | Neoprene Washer |
| 11 | 51-200 | Core |
| 12 | 969-1162 | Spring |
| 12 | Coil | Give # on Coil |
| 14 | 16-253 | Bakelite Washer |
| 15 | 16-426 | Brass Washer |
| 16 | 911-373 | Long Hex Screw |
| 17 | 23-435 | Contact |
| 18 | 24-196-2 | Contact Lever |
| 19 | 26-196-4 | Contact Lever (Left Hand) |
| 20 | 24-196-5 | Contact Lever w/o Arc Guard |
| 21 | 62-93 | Arc Horn |
| 22 | 13-84 | Pin |
| 23 | 916-1164Z | Shim Washer .016 Thick |
| 24 | 29-541 | Spring Ring |
| 25 | 13-587 | Adjusting Pin |
| 27 | 29-735 | Insulating Tube |
| 28 | 55-217 | Clamp |
| 29 | 13-164 | Shaft |
| 35 | 911-5646Z | Contact Mounting Screw |
| 36 | 62-234-6 | Contact Support Complete |
| 37 | 911-5646Z | Contact Mounting Screw |
| 38 | 14-256-18 | Stud for Panel |
| 39 | 9-460-162 | Blowout Coil |
| 40 | 79-888 | Support |
| 41 | 17-2294 | Base |
| 42 | 11-1249 | Screw |
| 43 | 17-2291 | Base R.H. |
| 43 | 17-2292 | Base L.H. |
| 44 | 79-1677 | Bracket |
| 44 | 73-865 | Arc Shield L.H. |
| 45 | 62-208 | Pole Piece |
| 46 | 17-2293 | Side Plate |
| 47 | 25-990 | Connector |
| 48 | 62-233 | Arc Shield Complete |
| 49 | 73-864 | Arc Shield R.H. |
| 49 | 73-374 | Arc Shield |
| 50 | 69-58 | Spring |
| 52 | 62-234-4 | D-c Blowout Complete |
| 52 | 62-234 | D-c Blowout Complete |
| 52 | 62-234-3 | D-c Blowout Complete |
| 52 | 62-234-2 | D-c Blowout Complete |
| 53 | 79-4288 | Support Plate |
