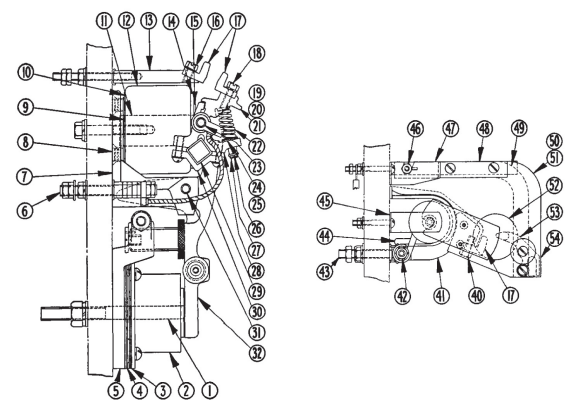

Ohio Contact replacement crane controls for Cutler Hammer No. 580 100 Amp Double Pole DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 618-351 | Post |
| 3 | 19-1367 | Shim |
| 4 | 19-1366 | Shim |
| 5 | 17-2134-2 | Base |
| 6 | 14-274-22 | Stud for 1-1/2" Panel |
| 7 | 17-207-15 | Magnet Frame |
| 8 | 969-1162 | Spring |
| 9 | 916-2882Z | Steel Washer |
| 10 | 16-1551-2 | Neoprene Washer |
| 11 | 51-92 | Coil Core |
| 13 | 618-407 | Contact Support Complete |
| 14 | 16-253 | Bakelite Washer |
| 15 | 16-252 | Brass Washer |
| 16 | 911-5445FZ | Contact Screw |
| 17 | 1321-841 | Contact |
| 17 | 23-812 | Contact, Silver Tipped |
| 18 | 911-5448F1 | Contact Screw |
| 19 | 24-1321-2 | Contact Lever w/Connector |
| 20 | 24-1321-4 | Contact Lever Left Hand |
| 21 | 24-792-5 | Contact Lever Complete |
| 21 | 624-578 | Contact Lever Left Hand |
| 22 | 969-439 | Spring |
| 23 | 956-1838 | Pin |
| 24 | 16-320 | Washer |
| 25 | 916-174 | Washer |
| 26 | 29-531 | Retaining Ring |
| 27 | 13-591 | Adjusting Pin |
| 28 | 24-864 | Lever |
| 29 | 29-722 | Insulating Tube |
| 30 | 955-51 | Clamp |
| 31 | 13-170 | Shaft |
| 32 | 24-1275 | Armature Lever |
| 33 | 6-168-37 | Set of Contacts |
| 40 | 911-5445Z | Long Hex. Screw |
| 41 | 18-739 | Contact Support Complete |
| 42 | 911-5445Z | Long Hex. Screw |
| 43 | 814-266 | Stud For 3/4" Panel |
| 45 | 79-845 | Support |
| 46 | 14-359-2 | Stud |
| 48 | 17-1523 | Side Plate |
| 49 | 25-812 | Connector |
| 50 | 62-121 | Arc Shield, Complete |
| 52 | 73-242 | Arc Shield |
| 53 | 62-100 | Arc Horn |
| 54 | 62-86-7 | Blowout Complete 3/4" Panel |
