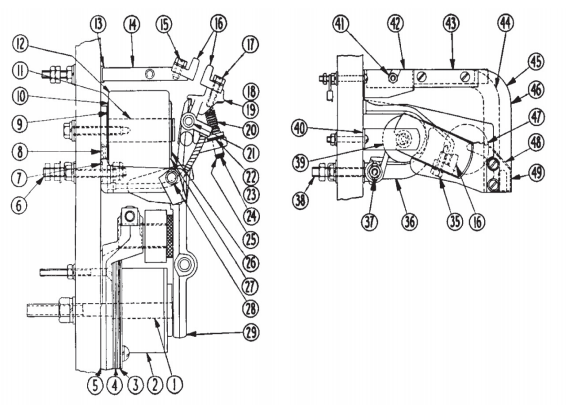

Ohio Contact replacement crane controls for Cutler Hammer No. 570 100 Amp DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 618-351 | Post |
| 2 | Coil | Give # on Coil |
| 3 | 19-1367 | Shim |
| 4 | 19-1366 | Shim |
| 5 | 17-2134 | Base Assembly |
| 6 | 814-567 | Stud |
| 7 | 17-207-6 | Magnet Frame |
| 8 | 69-2312 | Spring |
| 9 | 16-1552 | Steel Washer |
| 10 | 16-1551-3 | Neoprene Washer |
| 11 | 51-177 | Coil Core |
| 12 | Coil | Give # on Coil |
| 13 | 933-242Z1 | Locking Clip |
| 14 | 618-331 | Contact Support Complete |
| 15 | 911-5445FZ | Contact Screw |
| 16 | 23-812 | Contact, Silver Tipped |
| 16 | 1321-841 | Contact |
| 17 | 911-5447FZ | Contact Screw |
| 18 | 24-1321-2 | Contact Lever w/Connector |
| 19 | 24-792-5 | Contact Lever Complete |
| 20 | 969-439 | Spring |
| 21 | 956-1838 | Pin |
| 22 | 16-320 | Washer .016 Thick |
| 23 | 916-174 | Washer .032 Thick |
| 24 | 29-531 | Retaining Ring |
| 25 | 13-591 | Adjusting Pin |
| 26 | 16-391 | Brass Washer |
| 27 | 16-390 | Bakelite Washer |
| 28 | 13-163 | Shaft |
| 29 | 624-650 | Armature Lever |
| 30 | 6-168-29 | Set of Contacts |
| 35 | 911-5445Z | Long Hex. Screw |
| 36 | 18-739 | Contact Support Complete |
| 37 | 911-5445Z | Long Hex. Screw |
| 38 | 814-266 | Stud For 3/4" Panel |
| 39 | Blowout Coil | Give # on Coil |
| 40 | 79-845 | Support |
| 41 | 14-359-2 | Stud |
| 43 | 17-1523 | Side Plate |
| 44 | 25-812 | Connector |
| 45 | 62-121 | Arc Shield, Complete |
| 48 | 62-100 | Arc Horn |
| 49 | 62-86-7 | Blowout Complete |
