Ohio Contact replacement crane controls for Cutler Hammer No. 562 300 Amp Spring Closed DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

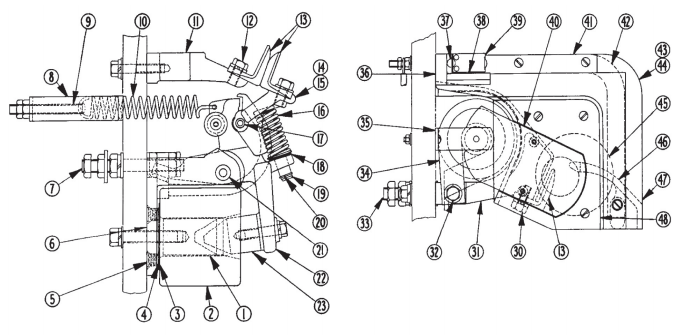

| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 51-335-3 | Core |
| 2 | Coil | Give # on Coil |
| 3 | 16-1551-2 | Neoprene Washer |
| 4 | 916-2921Z | Steel Washer |
| 5 | 969-1162 | Spring |
| 6 | 17-207-16 | Magnet Frame |
| 7 | 1314-843 | Copper Stud |
| 8 | 979-807J | Bracket |
| 9 | 914-3568C | Adjusting Stud |
| 10 | 969-2001J | Spring |
| 11 | 79-124-4 | Contact Support Complete |
| 12 | 911-373 | Long Hex Screw |
| 13 | 23-435 | Contact |
| 14 | 24-196-2 | Contact Lever |
| 15 | 24-196-5 | Contact Lever w/o Arc Guard |
| 16 | 69-58 | Spring |
| 17 | 13-84 | Pin |
| 18 | 916-1164Z | Shim Washer .016 Thick |
| 18 | 16-319 | Shim Washer .032 Thick |
| 19 | 13-587 | Adjusting Pin |
| 20 | 29-541 | Spring Ring |
| 21 | 13-164 | Shaft |
| 22 | 24-1201-2 | Armature Lever Complete |
| 23 | 51-369 | Plunger |
| 24 | 6-168-10 | Contact Set |
| 29 | 6-168-10 | Contact Set |
| 30 | 911-5646Z | Contact Mounting Screw |
| 31 | 62-234-6 | Contact Support Complete |
| 32 | 911-5646Z | Contact Mounting Screw |
| 32 | 916-882Z | Washer |
| 33 | 1314-844 | Stud for 3/4 Panel |
| 34 | 9-460-162 | Blowout Coil |
| 35 | 79-888 | Support |
| 36 | 17-2294 | Base |
| 37 | 11-1249 | Screw |
| 38 | 17-2291 | Base R.H. |
| 38 | 17-2292 | Base L.H. |
| 39 | 79-1677 | Bracket |
| 40 | 62-208 | Pole Piece |
| 41 | 17-2293 | Side Plate |
| 42 | 25-990 | Connector |
| 43 | 62-233 | Arc Shield Complete |
| 44 | 73-865 | Arc Shield L.H. |
| 44 | 73-864 | Arc Shield R.H. |
| 45 | 73-374 | Arc Shield |
| 46 | 62-93 | Arc Horn |
| 48 | 79-4288 | Support Plate |
