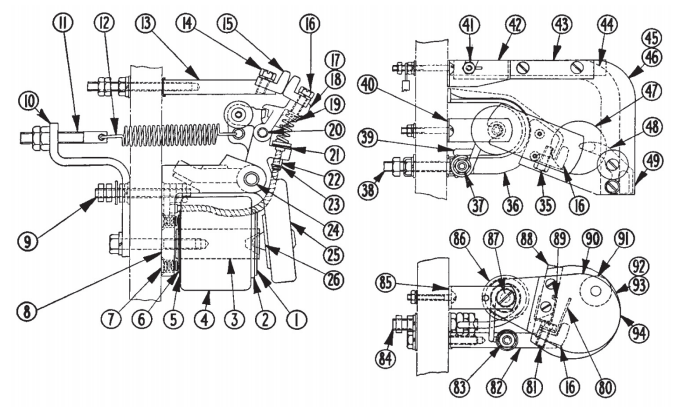

Ohio Contact replacement crane controls for Cutler Hammer No. 560 100 Amp Spring Closed DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 16-398 | Brass Washer |
| 2 | 16-399 | Bakelite Washer |
| 3 | 51-182-2 | Core |
| 4 | Coil | Give # on Coil |
| 5 | 16-1551-2 | Neoprene Washer |
| 6 | 916-2881Z | Steel Washer |
| 7 | 969-1001J | Spring |
| 8 | 17-207-7 | Magnet Frame |
| 9 | 814-565 | Stud for 3/4" Panel |
| 10 | 79-866 | Bracket |
| 11 | 914-3568C | Adjusting Stud |
| 12 | 969-196 | Spring |
| 13 | 618-407 | Contact Support Complete |
| 14 | 911-5445FZ | Contact Screw |
| 15 | 23-812 | Contact, Silver Tipped |
| 15 | 1321-841 | Contact |
| 16 | 911-5447FZ | Contact Screw |
| 17 | 24-1321-6 | Contact Lever w/Connector |
| 18 | 24-792-3 | Contact Lever, Complete |
| 19 | 969-439 | Spring |
| 20 | 956-1838 | Pin |
| 21 | 16-320 | Washer .016 Thick |
| 22 | 13-595 | Adjusting Pin |
| 23 | 29-531 | Retaining Ring |
| 24 | 13-716 | Shaft |
| 25 | 24-1226 | Armature Lever |
| 26 | 51-181 | Core Plug |
| 27 | 6-168-29 | Set of Contacts |
| 36 | 18-739 | Contact Support Complete |
| 38 | 814-266 | Stud For 3/4" Panel |
| 39 | Blowout Coil | Give # on Coil |
| 40 | 79-845 | Support |
| 40 | 79-845 | Support |
| 41 | 14-359-2 | Stud |
| 43 | 17-1523 | Side Plate |
| 44 | 25-812 | Connector |
| 45 | 62-121 | Arc Shield, Complete |
| 48 | 62-100 | Arc Horn |
| 49 | 62-86-7 | Blowout Complete 3/4" Panel |
| 80 | 49-239 | Arc Guard |
| 81 | 911-5445FZ | Contact Screw |
| 82 | 618-401 | Contact Support Complete |
| 84 | 814-266 | Stud For 3/4" Panel |
| 85 | 879-107 | Support |
| 86 | Blowout Coil | Give # on Coil |
| 87 | 929-992 | Spacer |
| 88 | 2222-402 | Spacer |
| 89 | 933-203Z | Protecting Clip |
| 90 | 962-54 | Pole Piece |
| 91 | 2222-48 | Spacer |
| 92 | 4973-5 | Arc Shield |
| 93 | 662-159 | Arc Chute Assembly |
