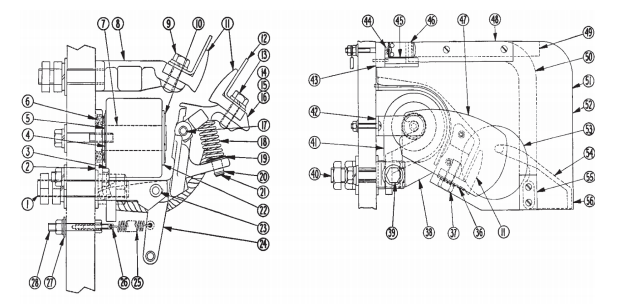

Ohio Contact replacement crane controls for Cutler Hammer No. 545 600 Amp DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 1314-100 | Pin for 1" Panel |
| 2 | 17-207-16 | Magnet Frame |
| 3 | Coil | Give # on Coil |
| 4 | 16-1551-2 | Neoprene Washer |
| 5 | 16-1944-2 | Steel Washer |
| 6 | 69-2441 | Spring |
| 7 | 51-979 | Core |
| 8 | 23-1289-3 | Contact Support Complete |
| 9 | 911-5890Z | Screw |
| 10 | 16-426 | Brass Washer |
| 11 | 23-1225 | Contact |
| 12 | 73-1268 | Arc Guard |
| 13 | 911-5892Z | Contact Screw |
| 14 | 624-594 | Contact Lever w/Connector |
| 15 | 24-1330-2 | Contact Lever with Arc Guard |
| 16 | 24-1330 | Contact Lever w/o Arc Guard |
| 17 | 13-3961 | Shaft |
| 18 | 69-2376 | Spring |
| 19 | 916-1121Z | Washer |
| 20 | 29-541 | Spring Ring |
| 21 | 13-593 | Adjusting Pin |
| 22 | 16-253 | Brakelite Washer |
| 23 | 13-164 | Shaft |
| 24 | 624-592 | Armature Lever |
| 25 | 969-887J | Spring |
| 26 | 14-541 | Adjusting Stud |
| 27 | 4416-841 | Insulating Washer |
| 28 | 11-2212 | Screw |
| 29 | 6-168-35 | Set of Contacts |
| 37 | 911-5890Z | Screw |
| 38 | 62-236-5 | Contact Support Complete |
| 39 | 911-5890Z | Screw |
| 40 | 14-256-12 | Stud for 1" Panel |
| 41 | 9-460-163 | Blowout Coil |
| 42 | 79-891 | Support |
| 43 | 17-2294 | Base |
| 44 | 11-1249-2 | Screw |
| 45 | 17-2291 | Base R.H. |
| 45 | 17-2292 | Base L.H. |
| 46 | 79-1677 | Bracket |
| 47 | 62-98 | Pole Piece |
| 48 | 17-2295 | Side Plate |
| 49 | 29-1127 | Spacer |
| 50 | 25-991 | Connector |
| 51 | 62-235 | Arc Shield Complete |
| 52 | 73-268 | Arc Shield (Right Half ) |
| 52 | 73-267 | Arc Shield (Left Half ) |
| 53 | 73-243 | Arc Shield |
| 54 | 62-99 | Arc Horn |
| 55 | 17-1250 | Side Plate |
