Cutler Hammer No. 542 300 Amp DC Contactor

Ohio Contact replacement crane controls for Cutler Hammer No. 542 300 Amp DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

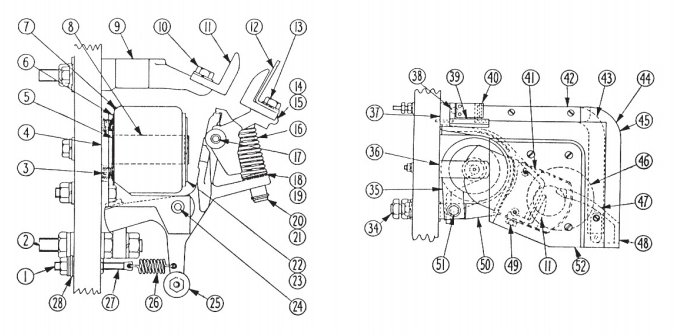

Cutler Hammer No. 542 300 Amp DC Contactor

Item No. OEM No. Description
1 11-1028-3 Screw
3 69-2441 Spring
4 17-207-15 Magnet Frame
5 916-2882Z Steel Washer
6 16-1551-2 Neoprene Washer
7 Coil Give # on Coil
8 51-92 Coil Core
9 79-124-4 Contact Support complete
10 911-373 Long Hex Screw
11 23-435 Contact
12 49-99 Arc Guard
14 24-196-2 Contact Lever
15 24-196-5 Contact Lever w/o Arc Guard
15 24-196-15 Contact Lever with Arc Guard
16 69-58 Spring
17 13-84 Pin
18 916-1164Z Shim Washer .016 Thick
19 16-319 Shim Washer .032 Thick
20 13-587 Adjusting Pin
21 29-541 Spring Ring
22 16-252 Brass Washer
23 16-253 Brakelite Washer
24 13-170 Shaft
25 24-215 Armature Lever
26 969-887J Spring
27 14-541 Adjusting Stud
28 4416-841 Insulating Washer
29 6-168-10 Contact Set
35 9-460-162 Blowout Coil
36 79-888 Support
37 17-2294 Base
38 11-1249 Screw
39 17-2292 Base L.H.
39 17-2291 Base R.H.
40 79-1677 Bracket
41 62-208 Pole Piece
42 17-2293 Side Plate
43 25-990 Connector
44 62-233 Arc Shield Complete
45 73-865 Arc Shield L.H.
45 73-864 Arc Shield R.H.
46 73-374 Arc Shield
47 62-93 Arc Horn
49 911-5646Z Contact Mounting Screw
50 62-234-6 Contact Support Complete
52 79-4288 Support Plate
0 62-234 D-c Blowout Complete
0 62-234-2 D-c Blowout Complete
0 62-234-3 D-c Blowout Complete
0 62-234-4 D-c Blowout Complete
