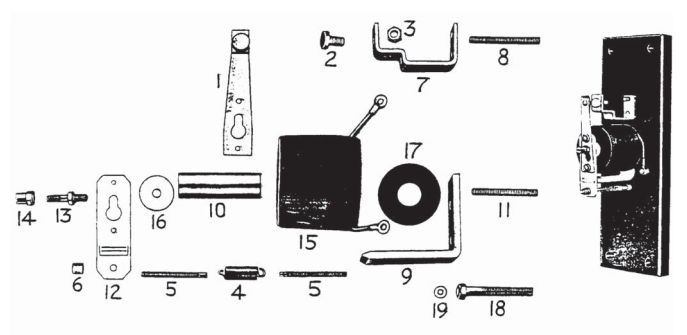

Ohio Contact replacement crane controls for Clark Type VR Voltage Relay. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | A29-81955A | Front Contact (movable) |
| 2 | A29-2691A | Rear Contact Assembled |
| 3 | A29-2684 | Lock Nut |
| 4 | T-46-24 | Spring |
| 5 | A18-1978 | Adjusting Stud |
| 5 | A77-24732 | Adj. Stud |
| 6 | A29-2689 | Adjusting Nut |
| 7 | A29-2671 | Rear Contact Bracket |
| 8 | T-7-36 | Aux. Stud |
| 8 | T-7-150 | Aux. Stud |
| 9 | A29-2668 | Magnet Frame |
| 10 | A29-2679 | Magnet Core |
| 11 | T-7-81 | Stud (magnet Core) |
| 11 | T-7-73 | Stud (magnet Core) |
| 12 | A29-2669 | Magnet Arm |
| 13 | A29-2681 | Adjusting Stud |
| 14 | A29-2680 | Adjusting Nut |
| 16 | T-2-33 | Coil Clamp |
| 17 | T-38-17 | Coil Washer |
| 18 | A29-2676 | Stud |
| 19 | T-2-27 | Brass Washer |
| 0 | A29-7105A | VR Relay 7311.3 Complete |
| 0 | T-3-139 | Locking Pin |
