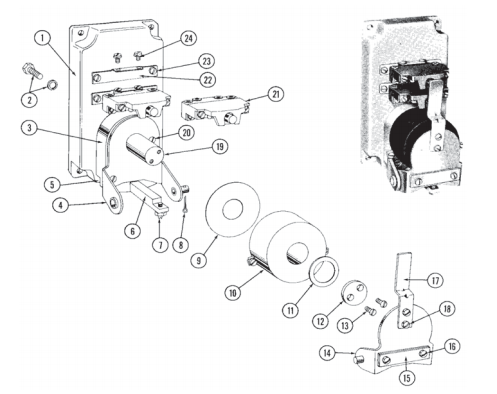

Ohio Contact replacement crane controls for Clark Type CH Relay. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 2 | T-155-15 | Washer |
| 4 | A13-10002A | Frame |
| 5 | T-121-50 | Lock Bolt, Equalizer Yoke |
| 5 | T-155-14 | Washer |
| 6 | A13-74585A | Stop Post with Mounting Post |
| 7 | T-159-1 | Mov Contact Support Stop Screw |
| 9 | T-38-22 | Coil Spacer (top) |
| 10 | TB-147-2 | Coil 230 VDC |
| 10 | TB-147-1 | Coil 115 VDC |
| 10 | TB-147-3 | Coil 550 VDC |
| 11 | T-38-89 | Coil Spacers |
| 12 | A13-26383 | Coil Clamp |
| 15 | A13-10040 | Counter Weight |
| 16 | T-155-10 | Spring Lockwasher |
| 16 | T-120-150 | Screw |
| 17 | A73-260924 | Operating Arm, 2-1/2" Long |
| 17 | A73-260918 | Operating Arm, 4" Long |
| 18 | T-155-10 | Spring Lockwasher |
| 18 | T-2-27 | Brass Washer |
| 18 | T-120-148 | Screw |
| 19 | A13-10028 | Core (LD) |
| 20 | T-155-10 | Spring Lockwasher |
| 21 | KKD-1 | Contact Block |
| 21 | KKD-2 | Contact Block |
| 21 | KKD-3 | Contact Block |
| 22 | A73-257301 | Contact Mounting Bracket |
| 23 | T-155-10 | Spring Lockwasher |
| 23 | T-120-105 | Screw |
| 24 | T-147-6 | Screw |
