Clark Type AP Anti-Plug Relay

Ohio Contact replacement crane controls for Clark Type AP Anti-Plug Relay. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

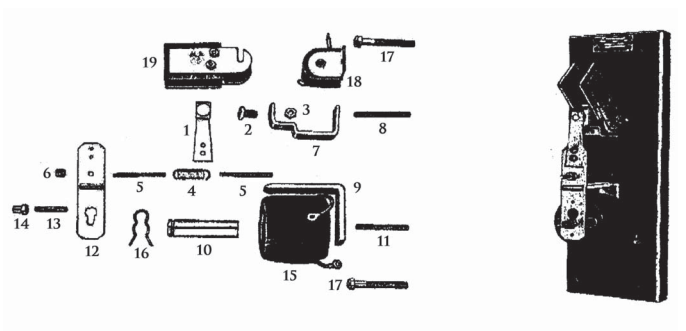

Clark Type AP Anti-Plug Relay

Item No. OEM No. Description
1 A29-82927A Front Contact Assembled
2 A29-2691A Rear Contact Assembled
3 A29-2684 Lock Nut
4 T-46-14 Spring
5 A18-1978 Adjusting Stud
6 A29-2689 Adjusting Nut
7 A29-2671 Rear contact Bracket
8 T-7-36 Aux. Stud
8 T-7-150 Aux. Stud
9 A29-2668 Magnet Frame
10 A29-2705A Magnet Core Assembled
11 T-7-81 Stud (magnet Core)
11 T-7-73 Stud (magnet Core)
12 A29-5952 Magnet Arm
13 A29-2706 Adjusting Stud
14 A29-2680 Adjusting Nut
16 T-55-5 Special Cotter
17 A29-2676 Stud
18 A29-2656A Blowout Coil Assembled
19 A29-2659A Arc Shield Assembly
0 A29-16351A AP Relay Complete
0 AP RELAY AP Relay Complete
0 A29-2656-2 Blowout Coil, 5 Amp
0 A29-2656-1 Blowout Coil, 2 Amp
0 A73-280057 Base
0 T-120-200 Screw
