Ohio Contact replacement crane controls for Clark Master Switch - Type RD, RDS. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

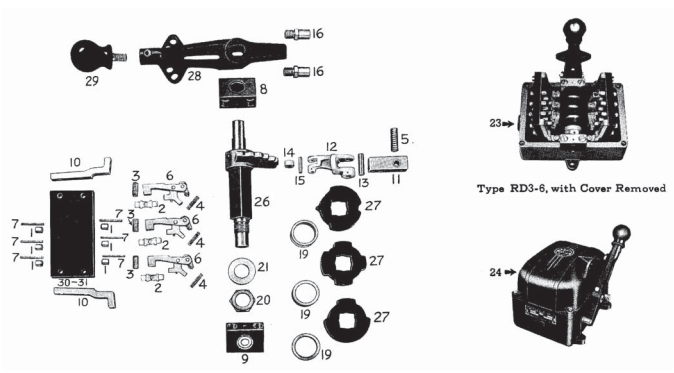

| Item No. | OEM No. | Description |
|---|---|---|
| 1 | A102-237821 | Stationary Contact |
| 1 | T-2-420 | Steel Washer |
| 2 | A101-28965A | Movable Contact |
| 3 | A101-34114 | Contact Spring |
| 4 | T-45-151 | Operating Spring |
| 5 | T-45-150 | Cam Roller Arm Spring |
| 6 | A101-34104A | Contact Arm |
| 7 | A102-237820-1 | Stud |
| 8 | A101-28969A | Front Bearing Block |
| 9 | A101-28970A | Rear Bearing Block Assembled |
| 10 | A101-34103A | Slate Bracket Assembled |
| 11 | A101-28950 | Roller Arm Block |
| 12 | A101-28951 | Cam Roller Arm |
| 13 | A101-28959 | Roller Arm Pin |
| 14 | A101-28958 | Cam Roller |
| 15 | A101-28961 | Cam Roller Pin |
| 16 | A101-28964 | Stop Stud |
| 17 | A101-34125 | Connector |
| 18 | A101-34124 | Jumper |
| 19 | T-24-220 | Spacer |
| 20 | A101-28962 | Locknut |
| 21 | [1] | Washer |
| 22 | [1] | Washer |
| 23 | [1] | Case Only |
| 24 | [1] | Cover Only |
| 25 | [1] | Shaft and Cam Assembly |
| 26 | [1] | Shaft & Quadrant Assembly |
| 27 | [1] | Cam |
| 28 | [1] | Lever |
| 29 | [1] | Handle |
| 30 | [1] | Slate, R.H. |
| 31 | [1] | Slate, L.H. |
| 32 | [1] | Return Spring |
