Clark Hatchway Limit Switch, Type HL

Ohio Contact replacement crane controls for Clark Hatchway Limit Switch, Type HL. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

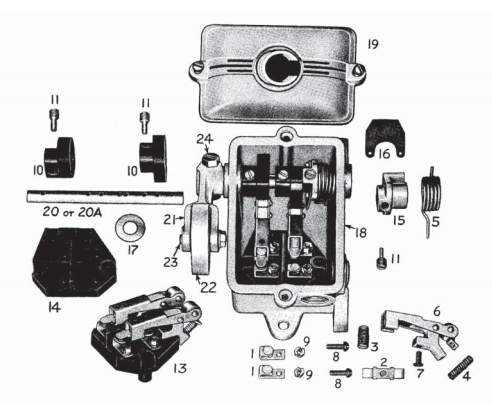

Clark Hatchway Limit Switch, Type HL

Item No. OEM No. Description
1 A102-41257A Stationary Contact
2 A101-28965A Movable Contact
3 A101-34114 Contact Spring
4 T-45-151 Operating Spring
5 A101-62988 Spring
6 A102-77222A Assembled Contact Arm
7 T-124-11 Lockwasher & Screw
8 T-127-4 Lockwasher & Screw
9 A73-46228 Slotted Nut
10 A102-52625 Cam for A101-88361A
11 A102-52858 Cam Screw
12 A102-41256A Contact Base Assembled
13 A102-41255A Contact Base Assembled
14 A102-41258 Contact Base Only
15 A102-41262 Spring Arm
16 A102-41264 Insulator
17 A102-54633 Spring Washer
18 A102-41253A Box, Assembled
19 A102-41254A Cover, Assembled
20 A102-41260 Shaft
20 A102-53536 Shaft
21 A102-41276 Lever
22 A102-127784A Roller, Standard Cast Iron
22 A102-36408 Roller, Textolite
23 A102-41266 Roller, Stud
24 T-161-8 Arm Adj. Bolt
25 T-24-91 Spacer
