Ohio Contact replacement crane controls for Clark D.C. Magnetic Contactor Type KD 300 Amp. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

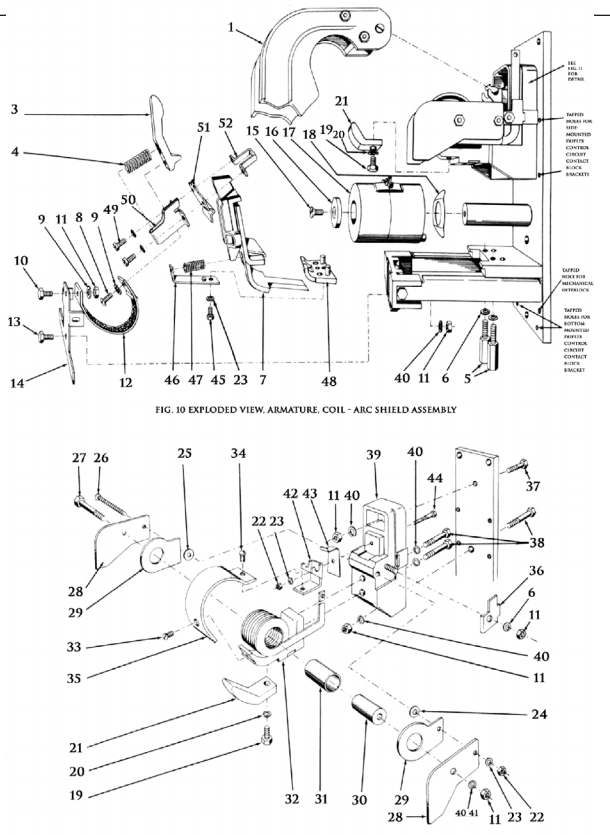

| Item No. | OEM No. | Description |
|---|---|---|
| 1 | KKD-301 | Arc Shield |
| 2 | KKD-300 | Contact Kit |
| 3 | B74-250831 | Movable Contact |
| 4 | KKD-302 | Moveable Contact Spring Only |
| 4 | A74-253069-3 | Contact Spring |
| 5 | A74-243825-2 | Shoulder Bolt |
| 6 | T-155-15 | Washer |
| 6 | T-155-14 | Washer |
| 6 | T-155-12 | Spring Lockwasher |
| 7 | B74-250826-A | Armature Molding Assembly |
| 8 | T-121-77 | Slotted Hex Head Screw |
| 9 | T-155-16 | Thin Spring Lockwash |
| 10 | T-121-81 | Slotted Hex Head Screw |
| 11 | T-115-25 | Hex Nut |
| 12 | KKD-304 | Flexible Connector Kit |
| 13 | T-121-78 | Hex Head Screw |
| 14 | B74-250809 | Front Connector Plate |
| 15 | T-172-23 | Coil Retainer Screw |
| 16 | A74-250840-A | Coil Retainer |
| 17 | TB-144-1 | Encapsulated Coil 240 VDC |
| 17 | TB-144-2 | Coil 120V DC |
| 17 | TB-144-8 | Coil 95V DC |
| 18 | A74-244379 | Coil Spring Washer |
| 20 | T-121-76 | Magnet Coil Bolts |
| 20 | T-155-16 | Thin Spring Lockwash |
| 21 | A74-250814 | Stationary Contact |
| 22 | T-115-25 | Hex Nut |
| 23 | T-155-12 | Spring Lockwasher |
| 24 | A74-244360-4 | Spacer |
| 26 | T-121-258 | Brass Rd. Head Screw |
| 27 | T-121-10 | Hex Head Screw |
| 28 | A74-250819 | Blowout Ears |
| 29 | A74-250816 | Blowout Washer |
| 30 | A74-250847 | Blowout Core |
| 31 | A74-243807-3 | Blowout Core Insulator |
| 32 | A74-250822-A | Blowout Coil Assembly |
| 33 | T-122-110 | Stl. Flat Head Screw |
| 34 | T-123-15 | P.A. Rd. Head Screw |
| 35 | B74-250813 | Rear Arc Runner |
| 36 | A74-250815 | Blowout Cli[ |
| 37 | T-121-90 | Hex Head Screw |
| 38 | T-121-92 | Hex Head Screw |
| 39 | D74-250801 | Base Insulator |
| 40 | T-155-15 | Washer |
| 40 | T-155-12 | Spring Lockwasher |
| 42 | A74-250812 | Arc Shield Pivot Support |
| 43 | A74-250811 | Arc Shield Spring Clip |
| 44 | T-120-195 | Stl. Hex Head Screw |
| 45 | T-121-9 | Stl. Head Hex Screw |
| 46 | A74-250834 | Spring Retainer |
| 47 | A74-250833 | Spring |
| 48 | A74-250818-A | Pivot Support Assembly |
| 49 | T-132-25 | Stl. Til. Head Screw |
| 50 | A74-250829 | Contact Spring Retainer |
| 51 | B74-250827 | Pivot Plate |
| 52 | A74-250846-A | Clamp |
