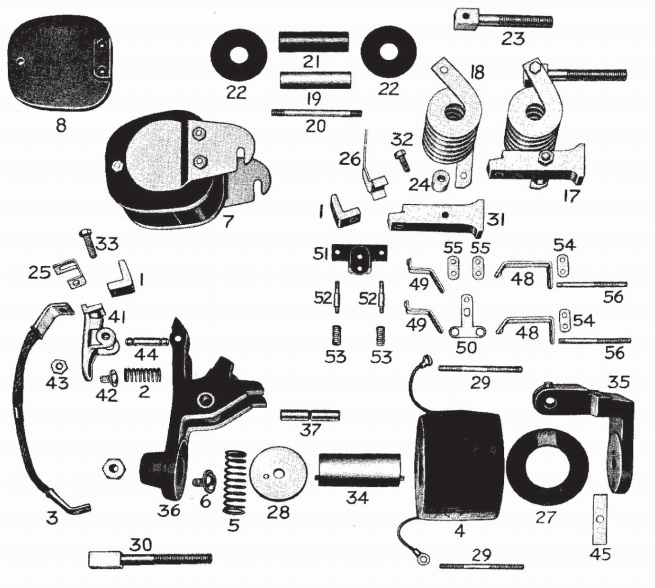

Ohio Contact replacement crane controls for Clark D.C. Magnetic Contactor Form 600-5RS. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | A18-9091 | Contact |
| 3 | A18-9060A | Shunt |
| 4 | TB-166-1 | Encapsulated Coil, 230 VDC |
| 4 | TB-66-4 | Coil, 230VDC Continuous |
| 4 | TB-166-2 | Coil, 115VDC |
| 5 | A18-22999 | Operating Spring |
| 6 | A18-22993A | Operating Spring Adj, Screw |
| 7 | A18-22029A | Arc Shield, Assembly |
| 8 | A18-21380 | Arc Shield Side Plate |
| 9 | T-38-66 | Arc Shield Washer |
| 10 | T-7-148 | Arc Shield Stud |
| 11 | T-7-149 | Acr Shield Stud |
| 12 | A18-21381 | Arc Barrier, Front |
| 15 | A18-9012 | Blowout Ear, R. H. |
| 16 | A18-9101 | Blowout Ear, L. H. |
| 17 | A18-9121A | Blowout Coil, Assembly |
| 17 | A74-257318A | Blowout Coil Assy, Frt. Con. |
| 18 | A18-9090 | Blowout Coil |
| 19 | A18-9079 | Blowout Core |
| 21 | T-39-92 | Blowout Core Insulator |
| 22 | T-38-42 | Blowout Washer |
| 23 | A18-9093 | Blowout Stud |
| 25 | A18-9099 | Arc Horn, Front |
| 26 | A18-9098 | Arc Horn, Rear |
| 27 | A18-27618 | Coil Washer |
| 28 | A18-22996 | Coil Clamp |
| 29 | T-7-47 | Coil Terminal Stud |
| 29 | T-7-199 | Coil Terminal Stud |
| 30 | A18-9092 | Connector Stud |
| 30 | A74-239877A | Connector Terminal (Front) |
| 31 | A18-9085 | Contact Stud |
| 32 | T-104-5 | Contact Screw |
| 33 | T-104-6 | Contact Screw |
| 34 | A18-22994A | Core Assem |
| 35 | A18-22991 | Frame |
| 36 | A18-22989A | Main Arm Assembly |
| 37 | A74-413282 | Stainless Steel Main Arm Pin |
| 37 | A74-413277 | Spring Clip |
| 38 | A18-9491-4 | Main Arm Bushing, Upper |
| 39 | A18-9474-14 | Main Arm Bushing, Lower |
| 40 | T-40-26 | Main Arm Bushing |
| 41 | A74-419607A | Moving Contact Support |
| 42 | A18-9076A | Mov Contact Support Adj. Screw |
| 44 | A74-413296 | SS Moving Contact Support Pin |
| 45 | A18-22997 | Stop Plate |
| 48 | A18-22986A | Contact |
| 49 | A18-22987A | Aux. Contact (C.T. Sta.) |
| 50 | A18-9464A | Auxiliary Contact Bar, Moveable |
| 51 | A74-408570 | Aux. Contact Insulator |
| 52 | A18-9477 | Aux. Contact Stud |
| 53 | A18-9483 | Spring |
| 54 | A13-26615 | Base Plate |
| 55 | A18-2542 | Aux. Contact Plate |
| 56 | T-7-47 | Coil Terminal Stud |
| 56 | T-7-36 | Aux. Stud |
| 57 | T-7-150 | Aux. Stud |
| 57 | A74-408572 | Nema 6 N.C.S.P. Contactor |
