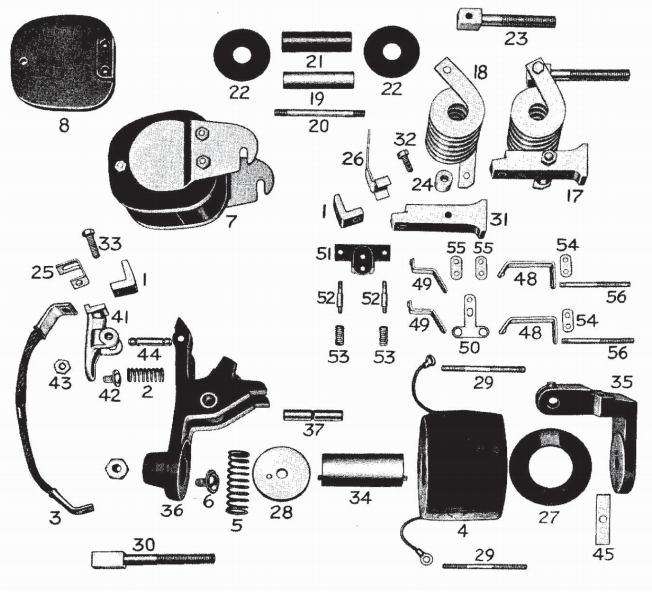

Ohio Contact replacement crane controls for Clark D.C. Magnetic Contactor Form 400-5RS. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | A18-5581 | Contact |
| 3 | A18-5558A | Connector |
| 4 | TB-30-1 | Coil |
| 4 | TB-30-2 | Coil, 230V |
| 4 | TB-30-4 | Coil, 60 VDC |
| 5 | T-45-210 | Operating Spring |
| 7 | A18-22028A | Arc Shield, Assembly |
| 8 | A18-21378 | Arc Shield Side Plate |
| 9 | T-38-65 | Arc Shield Washer |
| 10 | T-7-99 | Arc Shield Stud |
| 11 | T-120-188 | Arc Shield Stud |
| 12 | A18-22004 | Arc Barrier, Front |
| 13 | A18-5571 | Arc Barrier, Rear |
| 15 | A18-5573 | Blowout Ear, R.H. |
| 16 | A18-5574 | Blowout Ear, L.H. |
| 17 | A18-23693A | Blowout Coil, Assembly |
| 18 | A18-23694 | Blowout Coil |
| 19 | T-24-170 | Blowout Core |
| 20 | T-7-101 | Blowout Core Stud |
| 21 | T-39-146 | Blowout Core Insulator |
| 22 | T-38-56 | Blowout Washer |
| 23 | A18-23695 | Blowout Stud |
| 24 | A18-23697 | Blowout Spacer |
| 25 | A18-5583 | Arc Horn, Front |
| 26 | A18-152938 | Arc Horn, Rear |
| 27 | A18-22649 | Coil Washer |
| 28 | A18-66732 | Coil Clamp |
| 29 | T-7-47 | Coil Terminal Stud |
| 29 | T-7-199 | Coil Terminal Stud |
| 30 | A18-5593 | Connector Stud |
| 30 | A18-24376 | Connector Stud |
| 31 | A18-23696 | Contact Stud |
| 32 | T-104-3 | Contact Screw |
| 33 | T-104-4 | Contact Screw |
| 34 | A18-10555A | Core Assembly |
| 36 | A18-25375A | Frame |
| 37 | T-66-4 | Main Arm Pin |
| 38 | A18-9474-6 | Main Arm Bushing, Upper |
| 39 | A18-9474-12 | Main Arm Bushing, Lower |
| 40 | T-40-24 | Main Arm Bushing, Lower, Brass |
| 41 | A18-26294A | Main Contact Support-Back Conn |
| 42 | A18-5594A | Mov Contact Support Adj. Screw |
| 43 | T-115-32 | Mov Contact Support Lock Nut |
| 44 | A18-24297 | Moving Contact Support Pin |
| 50 | A18-9464A | Auxiliary Contact Bar, Moveable |
| 51 | A18-5586 | Aux. Contact Insulator |
| 52 | A18-9477 | Aux. Contact Stud |
| 53 | A18-9483 | Spring |
| 54 | A18-2543 | Aux. Contact Base Plate |
| 55 | A18-2542 | Aux. Contact Plate |
| 56 | T-7-47 | Coil Terminal Stud |
| 56 | T-7-36 | Aux. Stud |
| 56 | T-7-150 | Aux. Stud |
