Clark D.C. Magnetic Contactor Form 400-3R3A

Ohio Contact replacement crane controls for Clark D.C. Magnetic Contactor Form 400-3R3A. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

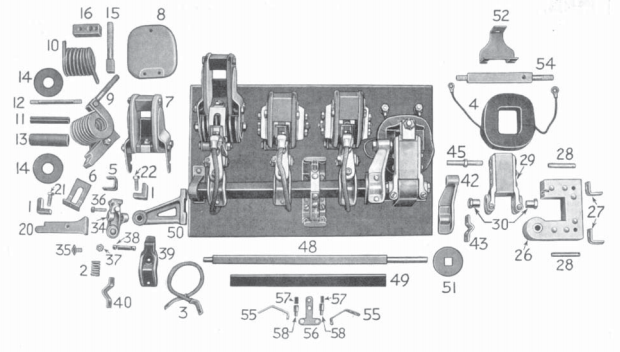

Clark D.C. Magnetic Contactor Form 400-3R3A

Item No. OEM No. Description
1 A16-1936 Contact (Main-Mov. & Sta.)
2 A77-20545 Contact Sprint
3 A16-8113A Connector
7 A18-4950A Arc Shield Assembly
8 A18-4972 Arc Shield Side Plate, RH
8 A18-4973 Arc Shield Side Plate, LH
9 A16-92608A B/O Coil Assembly
10 A16-31756 B/O Coil
11 A16-1947 Blowout Core
12 T-120-201 Blowout Core Stud
13 T-39-24 Blowout Core Insulator
14 A16-1950 Blowout Washer
15 A16-31758 Blowout Stud, Back Connected
15 A16-31765 Blowout Stud, Front Connected
20 A16-31757 Contact Stud
21 T-132-21 Contact Screw
22 T-121-13 Contact Screw
26 A16-1929A Magnet Core
27 A16-1951 Magnet Core Mounting Angle
28 T-51-2 Magnet Core Pin
29 A16-1930A Magnet Arm
30 A16-1952 Magnet Arm Adj. Bushing
34 A16-18890A Moving Contact Support
35 A18-5065A Mov Contact Support Adj Screw
36 T-159-1 Mov Contact Support Stop Screw
38 T-37-36 Moving Cont. Sup. Pin
39 A16-31753 Main Contact Arm
40 A16-1939 Main Contact Arm Clamp
42 A16-1940 Operating Arm
43 A16-1941 Operating Arm Clamp
45 A16-1957 Operating Stud
48 TB-5-2 Shaft, 2 Pole
48 TB-5-3 Shaft, 3 Pole
49 TB-4-2 Shaft Insulator, 2 Pole
49 TB-4-3 Shaft Insulator, 3 Pole
50 A16-1934 Shaft Bearing
51 A16-1964 Shaft Spacer
52 A16-1969 Shading Coil, 60 Cycle
52 A16-1970 Shading Coil, 25 Cycle
54 A16-1960 Stop Stud, 1-1/4" Slate
55 A16-10263A Stationary Tip
56 A16-10265A Movable Contact
57 T-45-24 Aux. Contact Spring
58 T-5-1 Aux. Contact Spring Stud
