Clark D.C. Magnetic Contactor Form 300-4RT

Ohio Contact replacement crane controls for Clark D.C. Magnetic Contactor Form 300-4RT. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

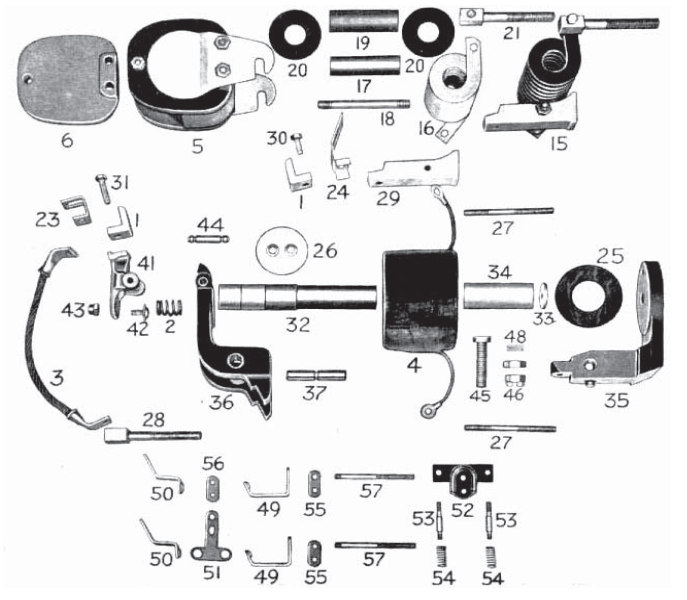

Clark D.C. Magnetic Contactor Form 300-4RT

Item No. OEM No. Description
1 A18-3504 Contact (Main-Mov. & Sta.)
2 A18-9383 Contact Spring-Back Connected
3 A18-9356A Connector
5 A18-21984A Arc Shield, Assembly
6 A18-21378 Arc Shield Side Plate
7 T-38-65 Arc Shield Washer
8 T-7-116 Arc shield Stud
10 A18-21379 Arc Barrier, Front
11 A18-8159 Arc Barrier, Rear
13 A18-5573 Blowout Ear, R.H.
14 A18-5574 Blowout Ear, L.H.
15 A18-23683A Blowout Coil Assembly
16 A18-23684 Blowout Coil
17 T-24-95 Blowout Core
18 T-7-117 Blowout Core Stud
19 T-39-87 Blowout Core Insulator
20 T-38-37 Blowout Washer
21 A18-23685 Blowout Stud
22 A18-23687 Blowout Spacer
23 A18-3516 Arc Horn, Front
24 A16-6957 Arc Horn, Rear
25 A18-24397 Coil Washer
26 A18-13663 Coil Clamp
27 T-7-47 Coil Terminal Stud
27 T-7-199 Coil Terminal Stud
28 A18-6950 Connector Stud
28 A16-18115 Connector Stud
29 A18-23686 Contact Stud
30 T-104-2 Contact Screw
33 T-2-14 Core Washer
34 T-24-94 Core Spacer
35 A18-25371A Frame
36 A18-25347A Main Arm Assembly
37 T-66-3 Main Arm Pin
38 A18-9491-3 Main Arm Bushing, Upper
39 A18-9474-11 Main Arm Bushing, Lower
40 T-40-23 Main Arm Bushing, Lower, Brass
41 A18-26292A Main Contact Support-Back Conn
42 A18-5594A Mov Contact Support Adj. Screw
43 T-115-32 Mov Contact Support Lock Nut
44 A18-22714 SS Moving Contact Support Pin
45 A18-3519 Stop Stud
45 A18-3520 Stop Stud Nut
47 T-3-17 Stop Stud Pin
48 T-2-30 Stop Stud Washer
49 A18-9109A Stationary Control Contact
50 A18-9110A Stationary Control Contact
51 A18-9464A Auxiliary Contact Bar, Moveable
52 A18-2544 Aux. Contact Insulator
53 A18-9477 Aux. Contact Stud
54 A18-9483 Spring
55 A18-2543 Aux. Contact Base Plate
56 A18-2542 Aux. Contact Plate
57 T-7-47 Coil Terminal Stud
57 T-7-36 Aux. Stud
57 T-7-150 Aux. Stud
