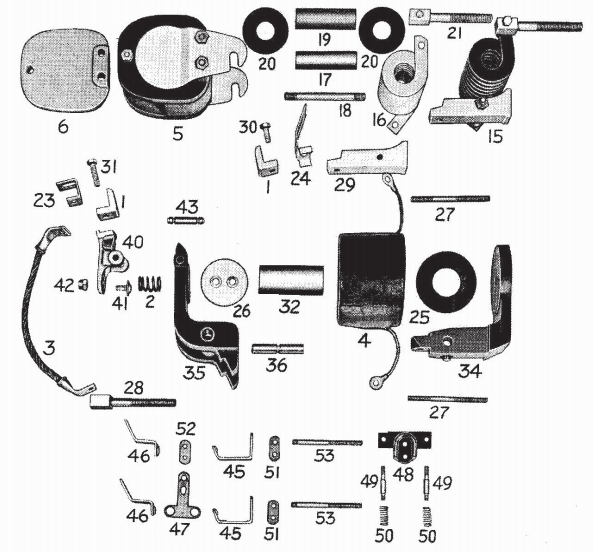

Ohio Contact replacement crane controls for Clark D.C. Magnetic Contactor Form 300-4RD. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | A18-3504 | Contact (Main-Mov. & Sta.) |
| 2 | A18-9383 | Contact Spring-Back Connected |
| 3 | A18-9356A | Connector |
| 4 | TB-44-1 | Coil, 115V |
| 4 | TB-43-1 | Coil, 115V |
| 4 | TB-44-2 | Coil, 230V |
| 4 | TB-43-2 | Coil, 230V |
| 4 | TB-44-3 | Coil, 550V |
| 4 | TB-43-4 | Coil, 550V |
| 5 | A18-21984A | Arc Shield Assembly |
| 6 | A18-21378 | Arc Shield Side Plate |
| 7 | T-38-65 | Arc Shield Washer |
| 8 | T-7-116 | Arc Shield Stud |
| 9 | T-120-187 | Arc Shield Stud |
| 10 | A18-21379 | Arc Barrier, Front |
| 11 | A18-8159 | Arc Barrier, Rear |
| 11 | A16-8159 | Arc Barrier, Rear |
| 13 | A18-5573 | Blowout Ear, R.H. |
| 14 | A18-5574 | Blowout Ear, L.H. |
| 15 | A18-23883A | Blowout Coil, Assembly |
| 15 | A18-23683A | Blowout Coil Assembly |
| 16 | A18-23684 | Blowout Coil |
| 17 | T-24-95 | Blowout Core |
| 18 | T-7-117 | Blowout Core Stud |
| 19 | T-39-87 | Blowout Core Insulator |
| 20 | T-38-37 | Blowout Washer |
| 21 | A18-23685 | Blowout Stud |
| 22 | A18-23687 | Blowout Spacer |
| 23 | A18-3516 | Arc Horn, Front |
| 24 | A16-6957 | Arc Horn, Rear |
| 25 | A18-24397 | Coil Washer |
| 26 | A18-8887 | Coil Clamp |
| 27 | T-7-47 | Coil Terminal Stud |
| 27 | T-7-199 | Coil Terminal Stud |
| 28 | A18-6950 | Connector Stud |
| 28 | A16-18115 | Connector Stud |
| 29 | A18-23686 | Contact Stud |
| 30 | T-104-2 | Contact Screw |
| 31 | T-104-2 | Contact Screw |
| 32 | A18-9374 | Core |
| 33 | T-2-42 | Core Spacer |
| 34 | A18-25369A | Fram |
| 35 | A18-25347A | Main Arm Assembly |
| 36 | T-66-3 | Main Arm Pin |
| 37 | A18-9491-3 | Main Arm Bushing, Upper |
| 38 | A18-9474-11 | Main Arm Bushing, Lower |
| 38 | A16-6950 | Connector Stud |
| 39 | T-40-23 | Main Arm Bushing, Lower, Brass |
| 40 | A18-26292A | Main Contact Support-Back Conn |
| 40 | A18-26292A-M1 | Moving Contact Support |
| 41 | A18-5594A | Mov Contact Support Adj. Screw |
| 42 | T-115-32 | Mov Contact Support Lock Nut |
| 43 | A18-22714 | Moving Contact Support Pin |
| 44 | A18-9378 | Stop Stud |
| 45 | A18-9109A | Stationary Control Contact |
| 46 | A18-9110A | Stationary Control Contact |
| 47 | A18-9464A | Auxiliary Contact Bar, Moveable |
| 48 | A18-2544 | Aux. Contact Insulator |
| 49 | A18-9477 | Aux. Contact Stud |
| 50 | A18-9483 | Spring |
| 51 | A18-2543 | Aux. Contact Base Plate |
| 52 | A18-2542 | Aux. Contact Plate |
| 53 | T-7-36 | Aux. Stud |
| 53 | T-7-150 | Aux. Stud |
