Clark D.C. Magnetic Contactor Form 150-5RS

Ohio Contact replacement crane controls for Clark D.C. Magnetic Contactor Form 150-5RS. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

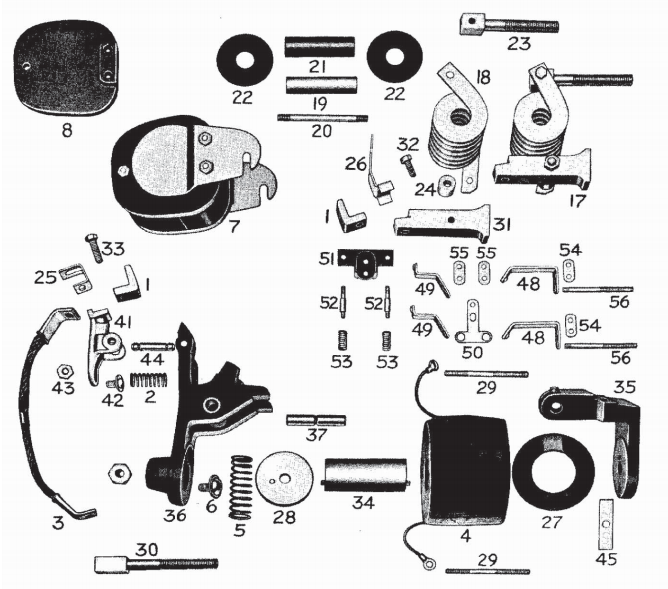

Clark D.C. Magnetic Contactor Form 150-5RS

Item No. OEM No. Description
1 A16-1936 Contact (Main-Mov. & Sta.)
2 T-45-216 Contact Spring
3 A18-2510A Connector
4 TB-41-1 Coil, 115V
4 TB-41-2 Coil, 230V
4 TB-41-3 Coil, 550 VDC
5 T-45-215 Operating Spring
6 A16-10878A Adj. Screw
7 A18-22027A Arc Shield, Assembly
8 A18-21305 Arc Shield Side Plate
9 T-38-65 Acr Shield Washer
10 T-120-99 Arc Shield Stud
11 T-120-96 Arc Shield Stud
12 A18-21324 Arc Barrier, Front
13 A16-8124 Arc Barrier, Rear
15 A18-2528 Blowout Ear, R.H.
16 A18-2529 Blowout Ear, L.H.
17 A18-23678A Blowout Coil, Assembly
18 A18-23679 Blowout Coil
19 T-24-92 Blowout Core
21 T-39-169 Blowout Core Insulator
22 T-38-38 Blowout Washer
23 A18-23680 Blowout Stud
24 A18-23682 Blowout Spacer
25 A18-2534 Arc Horn, Front
26 A16-8126 Arc Horn, Rear
27 A18-6710 Coil Washer
28 A18-66731 Coil Clamp
29 T-7-47 Coil Terminal Stud
29 T-7-199 Coil Terminal Stud
30 A18-2551 Connector Stud
30 A18-16994 Connector Stud
31 A18-23681 Contact Stud
32 T-132-21 Contact Screw
33 T-121-13 Contact Screw
34 A18-10736A Core Assembly
35 A18-25361A Frame
36 A18-25337A Main Arm Assembly
37 T-66-1 Main Arm Pin
38 A18-9491-1 Main Arm Bushing, Upper
39 A18-9474-9 Main Arm Bushing, Lower
40 T-40-21 Main Arm Bushing, Lower, Brass
41 A18-26288A Main Contact Support-Back Con.
42 A18-5065A Mov Contact Support Adj Screw
43 A18-9469 Mov Contact Support Lock Nut
44 A18-24379 Moving Contact Support Pin
45 A18-2588 Stop Plate
48 A18-9465A Stationary Control Contact
49 A18-9466A Stationary Control Contact
50 A18-9464A Auxiliary Contact Bar, Moveable
51 A18-2544 Aux. Contact Insulator
52 A18-9477 Aux. Contact Stud
53 A18-9483 Spring
54 A18-2543 Aux. Contact Base Plate
55 A18-2542 Aux. Contact Plate
56 T-7-47 Coil Terminal Stud
56 T-7-36 Aux. Stud
56 T-7-150 Aux. Stud
1 A16-7980 Contact
2 T-45-212 Contact Spring
3 A18-8863A Connector
4 TB-44-1 Coil, 115V
4 TB-44-2 Coil, 230V
4 TB-44-3 Coil, 550V
5 T-45-211 Operating Spring
6 A18-5594A Mov Contact Support Adj. Screw
7 A18-22026A Arc Shield, Assembly
8 A18-21322 Acr Shield Side Plate
9 T-38-65 Arc Shield Washer
10 T-7-122 Arc Shield Stud
11 T-120-186 Arc Shield Stud
12 A18-21323 Arc Barrier, Front
13 A16-8005 Arc Barrier, Rear
15 A18-3510 Blowout Ear, R.H.
16 A18-3511 Blowout Ear, L.H.
17 A18-23688A Blowout Coil, Assembly
18 A18-23689 Blowout Coil
19 T-24-93 Blowout Core
20 T-7-123 Blowout Core Stud
21 T-39-86 Blowout Core Insulator
22 T-38-36 Blowout Washer
23 A18-23690 Blowout Stud
24 A18-23692 Blowout Spacer
25 A16-8008 Arc Horn, Front
26 A16-8007 Arc Horn, Rear
27 A18-24397 Coil Washer
28 A18-66731 Coil Clamp
29 T-7-47 Coil Terminal Stud
29 T-7-199 Coil Terminal Stud
30 A18-16994 Connector Stud
30 A16-8002 Connector Stud
31 A18-23691 Contact Stud
32 T-104-1 Contact Screw
33 T-104-1 Contact Screw
34 A18-10732A Core Assembly
35 A18-25363A Frame
36 A18-25341A Main Arm Assembly
37 T-66-2 Main Arm Pin
38 A18-9491-2 Main Arm Bushing, Upper
39 A18-9474-10 Main Arm Bushing, Lower
40 T-40-22 Main Arm Bushing, Lower, Brass
41 A18-26290A Main Contact support-Back Conn
42 A16-7981A Adjusting Screw
43 A18-9469 Mov Contact Support Lock Nut
44 A18-24296 Mov Contact Support Pin
45 A18-8925 Stop Plate
48 A18-9465A Stationary Control Contact
49 A18-9466A Stationary Control Contact
50 A18-9464A Auxiliary Contact Bar, Moveable
51 A18-2544 Aux. Contact Insulator
52 A18-9477 Aux. Contact Stud
53 A18-9483 Spring
54 A18-2543 Aux. Contact Base Plate
55 A18-2542 Aux. Contact Plate
56 T-7-47 Coil Terminal Stud
56 T-7-36 Aux. Stud
56 T-7-150 Aux. Stud
