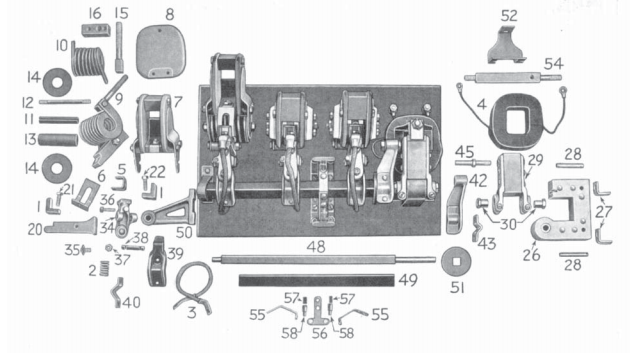

Ohio Contact replacement crane controls for Clark D.C. Magnetic Contactor Form 150-3R3A. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | A16-7980 | Contact |
| 2 | A16-8009 | Contact Spring |
| 3 | A16-7966A | Connector |
| 6 | A16-8007 | Arc Horn, Rear |
| 7 | A16-7965A | Arc Shield Assembly |
| 8 | A18-3514 | Arc Shield Side Plate |
| 9 | A16-100636A | B/O Coil Assy, Back Connected |
| 9 | A16-30558A | B/O Coil Assy, Front Connected |
| 10 | A16-30549 | Blowout Coil |
| 11 | A16-8003 | Blowout Core |
| 12 | T-7-123 | Blowout Core Stud |
| 13 | T-39-79 | Blowout Core Insulator |
| 14 | T-38-36 | Blowout Washer |
| 15 | A18-23690 | Blowout Stud |
| 16 | A16-30557 | Blowout Terminal |
| 20 | A18-23691 | Contact Stud |
| 21 | T-104-1 | Contact Screw |
| 22 | T-104-1 | Contact Screw |
| 26 | A16-7967A | Magnet Core |
| 27 | A16-7989 | Magnet Core Mounting Angle |
| 28 | T-37-43 | Magnet Core Pin |
| 29 | A16-7968A | Magnet Arm |
| 30 | A16-7982 | Magnet Arm Adjusting Bushing |
| 34 | A16-30548A | Moving Contact Support |
| 35 | A16-7981A | Adjusting Screw |
| 36 | T-16-30546 | Moving Cont. Sup. Stop Screw |
| 37 | A18-9469 | Mov Contact Support Lock Nut |
| 38 | A18-24296 | Moving Contact Support Pin |
| 39 | A16-30563A | Main Contact Arm |
| 40 | A16-7975 | Main Contact Arm Clamp |
| 42 | A16-13681 | Operating Arm |
| 43 | A16-7977 | Operating Arm Clamp |
| 45 | A16-7978 | Operating Stud |
| 48 | TB-5-14 | Shaft, 2 Pole |
| 48 | TB-5-15 | Shaft, 3 Pole |
| 49 | A77-117246A-2 | Shaft Insulator, 2 Pole |
| 49 | A77-117246A-3 | Shaft Insulator, 3 Pole |
| 50 | A16-13411A | Shaft Bearing |
| 51 | A16-8161 | Shaft Spacer |
| 52 | A16-8011A | Shading Coil, 60 Cycle |
| 53 | A16-8012A | Shading Coil, 25 Cycle |
| 54 | A16-7993 | Stop Stud, 1-1/4?Ç¥ Slate |
| 55 | A16-10264A | Aux. Contact Stationary |
| 56 | A18-9464A | Auxiliary Contact Bar, Moveable |
| 57 | T-45-38 | Aux. Contact Spring |
| 58 | T-13-1 | Aux. Contact Spring Stud |
