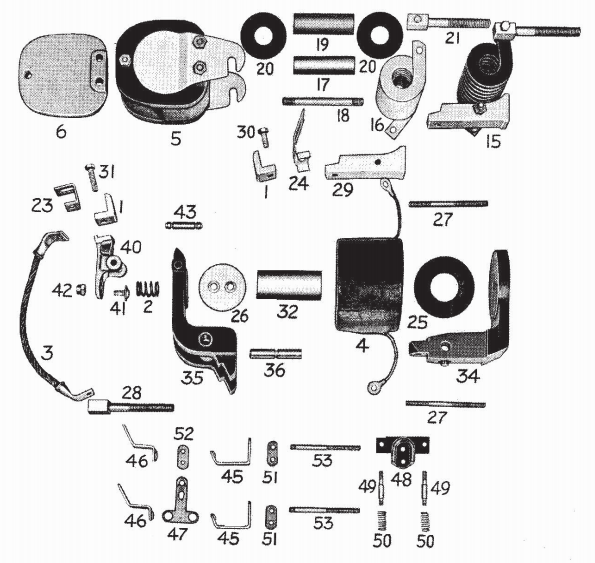

Ohio Contact replacement crane controls for Clark D.C. Magnetic Contactor Form 100-4RD. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!
| Item No. | OEM No. | Description |
|---|---|---|
| 1 | A16-1936 | Contact (Main-Mov. & Sta.) |
| 2 | A18-2518 | Contact Spring-Back Connected |
| 3 | A18-2510A | Connector |
| 4 | TB-17-3 | Coil, 115V |
| 4 | TB-17-1 | Coil, 230V |
| 4 | TB-17-2 | Coil, 550V |
| 4 | TB-16-3 | Coil, 115V |
| 4 | TB-16-1 | Coil, 230V |
| 4 | TB-16-2 | Coil, 550V |
| 5 | A18-22027A | Arc Shield, Assembly |
| 6 | A18-21305 | Arc Shield Side Plate |
| 7 | T-38-65 | Arc Shield Washer |
| 8 | T-120-99 | Arc Shield Stud |
| 9 | T-120-96 | Arc Shield Stud |
| 10 | A18-21324 | Arc Barrier, Front |
| 11 | A18-8124 | Arc Barrier, Rear |
| 11 | A16-8124 | Arc Barrier, Rear |
| 13 | A18-2528 | Blowout Ear, R.H. |
| 14 | A18-2529 | Blowout Ear, L.H. |
| 15 | A18-23678A | Blowout Coil, Assembly |
| 16 | A18-23679 | Blowout Coil |
| 17 | T-24-92 | Blowout Core |
| 18 | T-121-28 | Blowout Core Stud |
| 19 | T-39-169 | Blowout Core Insulator |
| 20 | T-38-38 | Blowout Core Insulator |
| 21 | A18-23680 | Blowout Stud |
| 22 | A18-23682 | Blowout Spacer |
| 24 | A16-8126 | Arc Horn, Rear |
| 0 | A18-2534 | Arc Horn, Front |
| 25 | A18-6710 | Coil Washer |
| 26 | A18-2548 | Coil Clamp |
| 27 | T-7-47 | Coil Teriminal Stud |
| 27 | T-7-199 | Coil Teriminal Stud |
| 28 | A18-2551 | Connector Stud |
| 28 | A18-16994 | Connector Stud |
| 29 | A18-23681 | Contact Screw |
| 30 | T-132-21 | Contact Screw |
| 31 | T-121-13 | Contact Screw |
| 32 | A18-3469 | Core |
| 33 | T-2-29 | Core Spacer |
| 34 | A18-25357A | Frame |
| 35 | A18-25339A | Main Arm, Assembly |
| 36 | T-66-1 | Main Arm Pin |
| 37 | A18-9491-1 | Main Arm Bushing, Upper |
| 38 | A18-9474-9 | Main Arm Bushing, Lower |
| 39 | T-40-21 | Main Arm Bushing, Lower Brass |
| 40 | A18-26288A | Main Contact Support-Back Conn |
| 41 | A18-5065A | Mov Contact Support Adj Screw |
| 42 | A18-9469 | Mov Contact support Lock Nut |
| 43 | A18-24379 | Moving Contact Support Pin |
| 44 | A18-2535 | Stop Stud |
| 45 | A18-9465A | Stationary Control Contact |
| 46 | A18-9466A | Stationary Control Contact |
| 47 | A18-9464A | Auxiliary Contact Bar, Moveable |
| 48 | A18-2544 | Aux. Contact Insulator |
| 49 | A18-9477 | Aux. Contact Stud |
| 50 | A18-9483 | Spring |
| 51 | A18-2543 | Aux. Contact Base Plate |
| 52 | A18-2542 | Aux. Contact Plate |
| 53 | T-7-36 | Aux. Stud |
| 53 | T-7-150 | Aux. Stud |
