Westinghouse Type TM-2311 Magnetic Shoe Brake

Ohio Contact replacement crane controls for Westinghouse Type TM-2311 Magnetic Shoe Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

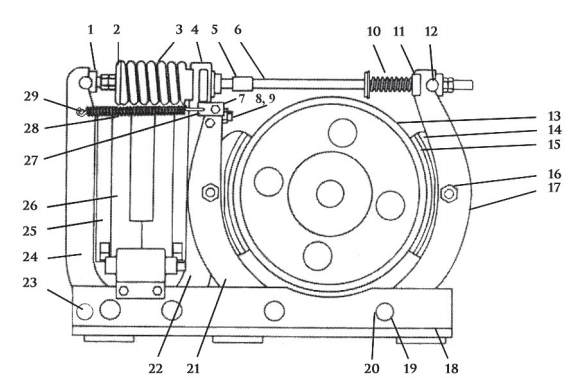

Westinghouse Type TM-2311 Magnetic Shoe Brake

Item No. OEM No. Description
0 318B917H07 Seal
0 31D4114H20 Bushing
29 318B790H07 Pin
28 438A069H05 Spring
27 318B778H07 Spring Clip
26 Coil Give # on Coil
25 319B098G01 Clapper
24 637C362G01 Clapper Arm
23 138B571H07 Pin
22 637C343G01 Clapper & Arm
21 637C324G02 Shoe Arm
20 318B789H07 Pin
19 31D4118H19 Bushing
18 434C392G01 Base
17 637C324G01 Shoe Arm
16 24D6387G02 Bolt
15 861C691G21 Lining Kit
14 635C316G01 Shoe & Lining
13 Brake Wheel Brake Wheel
12 318B787H07 Block
11 318B777H07 Spring Plate
10 24D5096H11 Spring
9 Flex Locknut NOT USED
8 318B793H06 Adj. Screw
7 438A429H01 Block
6 635C104G07 Tie Rod
5 318B792H06 Release BSNG
4 318B791H07 Block
3 438A072H03 Spring
2 318B795H07 Spring Retain
1 318B788H07 Block
