Westinghouse Type DI 104-F Magnetic Brake

Ohio Contact replacement crane controls for Westinghouse Type DI 104-F Magnetic Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

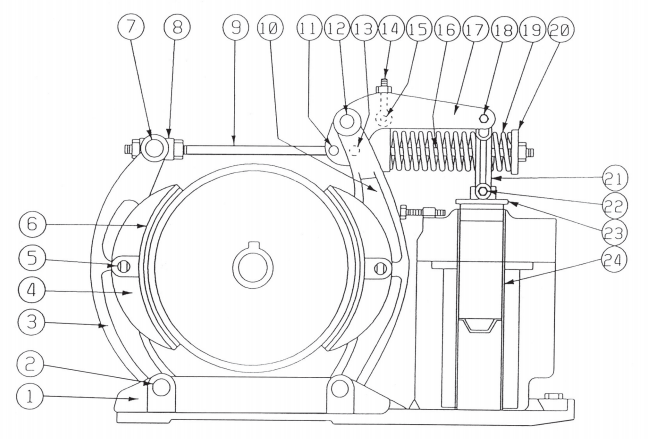

Westinghouse Type DI 104-F Magnetic Brake

Item No. OEM No. Description
0 1312809 Bushing
0 1303364 Bushing
0 1303363 Rod Bushing
0 1303362 Pivot Bushing
0 1303361 Bushing, Upper
0 1303360 Bushing, Lower
0 1303359 Bushing, Upper
0 831523 Operating Magnet
0 486346 Air Gap Spacer
0 486339 Operating Magnet
24 518901 Plunger Guide Bushing
23 575652 Plunger
22 1303368 Link Pin, Lower
21 550882 Connecting Link
20 492907 Spring Seat
19 429730 Spring
18 1303367 Link Pin, Upper
17 1397947 Brake Lever
16 487655 Spring Rod
15 487663 Hand Release Rod Pin
14 487657 Hand Release Rod
13 1303369 Spring Rod Pin
12 1303366 Brake Lever Pivot Pin
11 1303365 Connecting Rod Pin
10 1397946 Brake Arm, Rear
9 487642 Connecting Rod
8 766192 Hinge Block
7 1303371 Brake Arm Pin, Upper
6 487566 Lining
5 822258 Brake Shoe Pivot Bolt
4 492908 Brake Shoe w/Lining
3 1397945 Brake Arm Front
2 1303366 Brake Arm Pin, Lower
1 1496813 Base
