Square D EC&M No. 60 Type WB Brake, Folio 1

Ohio Contact replacement crane controls for Square D EC&M No. 60 Type WB Brake, Folio 1. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

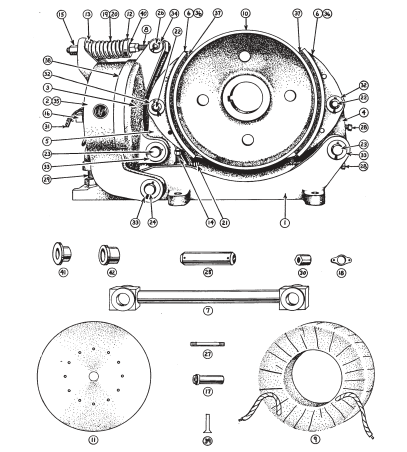

Square D EC&M No. 60 Type WB Brake, Folio 1

Item No. OEM No. Description
1 WB-689-A Frame
2 WB-6174-A Magnet Case
3 WB-6112-A Armature W/Dust Shield
4 WB-685-A Shoe Lever
5 WB-686-A Shoe Lever
6 WB-610-A Assembled Shoe W/Lining
7 WB-6070-A Connecting Rod
8 WB-683-A Spring Rod W/Nuts
11 WB-6183 Retaining Plate
12 WB-614 Spring Retainer
13 WB-6061 Spring Retainer
14 WB-6114 Shoe Adjusting Screw
15 WB-6012 Spring Rod Nut
16 WB-6168 Lead Block
17 WB-603 Terminal Bushing
18 Q-305 Terminal Guard
19 WB-6179 Operating Spring
20 WB-636 Operating Spring, Inner
21 WB-626 Centering Spring
22 WB-620 Shoe Pin
23 WB-622 Shoe Lever Hinge Pin
24 WB-623 Magnet Hinge Pin
25 WB-624 Connecting Rod Pin
26 WB-625 Spring Rod Pin
27 WB-6171 Lead Block Stud
28 WB-634 Shoe Adjusting Screw
29 WB-633 Magnet Adjusting Screw
30 WB-6169 Spl. Nut For Adj. Screw
32 WB-627 Washer
33 WB-628 Washer
34 WB-629 Washer
36 WB-6069-A Brake Shoe Only
37 WB-618 Brake Lining
38 WB-615 Dust Shield
39 WB-659 Rivet
40 WB-630 Thrust Washer
41 FP-24B10 Bearing
42 FP-24B11 Bearing
0 51001-071-65 Brake Block Kit
