Square D EC&M No. 50 Type WB Brake, Folio 3

Ohio Contact replacement crane controls for Square D EC&M No. 50 Type WB Brake, Folio 3. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

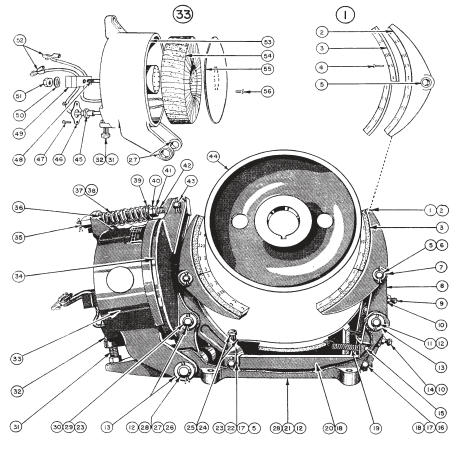

Square D EC&M No. 50 Type WB Brake, Folio 3

Item No. OEM No. Description
1 WB-5200-A Assembled Shoe, Complete
3 WB-518 Brake Lining
4 WB-559 Lining Rivet
5 FP-24B28 Bearing
6 WB-5213 Shoe Pin
7 WB-629 Washer
8 WB-5204-A Shoe Lever
9 WB-5244 Shoe Adjusting Screw
11 WB-5240 Shoe Lever Pin
12 FP-24B31 Bearing
12 WB-5317-A Brake Shoe
13 WB-627 Washer
14 WB-5243 Equalizing Screw
15 WB-519 Centering Spring Pin
16 WB-524 Connecting Rod Pin
17 FP-24B25 Bearing
18 FP-24C14 Bearing
19 WB-526 Centering Spring
20 WB-5217-A Connecting Rod
21 WB-5186-A Frame, Complete
22 WB-5202-A Shoe Lever
23 FP-24B15 Bearing
23 FP-24C15 Bearing
24 WB-4215 Shoe Adjusting Screw
26 WB-5223 Magnet Hinge Pin
27 FP-24B30 Bearing
28 FP-24C16 Bearing
29 WB-5222 Armature Pin
30 FP-24B29 Bearing
31 WB-533 Special Cap Screw
33 WB-5312-A Assembled Magnet, Complete
34 WB-5190-A Armature
35 WB-5236-A Spring Rod Nut
36 WB-5239 Spring Retainer
37 WB-516 Operating Spring (Large)
38 WB-536 Operating Spring (Small)
39 WB-514 Spring Collar
42 WB-4234-A Spring Rod
43 WB-525 Spring Rod Pin
45 WB-503 Terminal Bushing
46 WB-529 Terminal Guard
48 Q-369 Lead Block Stud
49 Q-368 Lead Block
53 WB-5192-A Magnet Case, Complete
55 WB-5183 Retaining Plate, Steel
0 WB-5140-A Coil
0 WB-5143-A Shunt Coil
