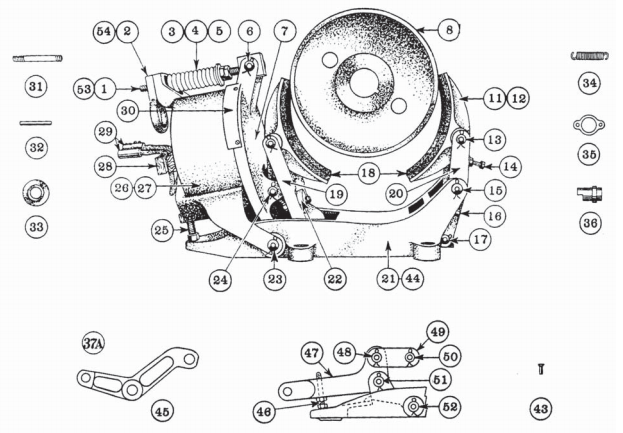

Square D EC&M No. 50 Type WB Brake, Folio 2

Item No. OEM No. Description
1 WB-583-A Spring Rod with Nuts
2 WB-581 Handle
4 WB-516 Operating Spring (Large)
5 WB-536 Operating Spring (Small)
6 WB-525 Spring Rod Pin
7 WB-587-A Armature
11 WB-5200-A Assembled Shoe, Complete
12 WB-5317-A Brake Shoe
13 WB-520 Shoe Pin
14 WB-334 Equalizing Screw
15 WB-522 Shoe Lever Hinge Pin
16 WB-5029 Special Cap Screw
17 WB-524 Connecting Rod Pin
18 WB-518 Brake Lining
19 WB-505 Shoe Lever
20 WB-585-A Shoe Lever With Spring Pin
21 WB-589-A Frame
22 WB-532-A Shoe Adjusting Wheel w/screw
23 WB-523 Magnet Hinge Pin
24 WB-521 Armature Pin
24 WB-5174-A Magnet Case
25 WB-533 Special Cap Screw
26 WB-5184-A Assembled Magnet
28 Q-368 Lead Block
30 WB-515 Dust Shield
31 Q-369 Lead Block Stud
32 WB-519 Centering Spring Pin
33 WB-514 Spring Collar
34 WB-526 Centering Spring
35 WB-529 Terminal Guard
36 WB-503 Terminal Bushing
37 WB-509 Retaining Plate, Brass
37 WB-5183 Retaining Plate, Steel
39 WB-5141-A Shunt Coil
40 WB-508 Balance Lever
41 WB-506 Connecting Rod
42 WB-556 Shoe Pin Bearing
43 WB-559 Lining Rivet
0 WB-561 Magnet Case Bushing
0 WB-5129-A Series Coil
0 51001-071-64 Brake Block Kit
0 WB-5234-A Spring Rod
0 WB-562 Bushing, Armature/Lower
0 WB-564 Bushing, Shoe Lever
0 WB-563 Bushing, Shoe Lever
