Square D EC&M No. 5 Type WB Brake, Folio 2

Ohio Contact replacement crane controls for Square D EC&M No. 5 Type WB Brake, Folio 2. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

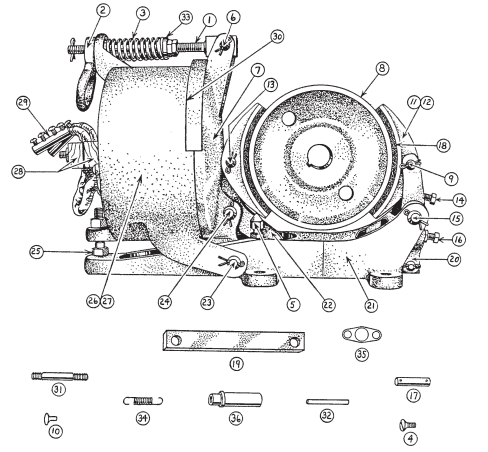

Square D EC&M No. 5 Type WB Brake, Folio 2

Item No. OEM No. Description
1 WB-0519-A Spring Rod
2 WB-0520 Handle
3 WB-0538 Spring
4 WB-1080 F.H. Screw
5 WB-0543 Shoe Adjusting Screw
6 WB-0537 Spring Rod Pin
7 WB-0514-A Armature
8 WB-0530 Brake Wheel 7" Diameter
9 WB-0546 Shoe Pin
10 WB-0550 Rivet
11 WB-0524-A Assembled Shoe, w/ Lining
12 WB-0522 Brake Shoe, w/out Lining
13 WB-0545 Shoe Pin
14 WB-0542 Shoe Adjusting Screw
15 WB-0534 Shoe Lever Hinge Pin
16 WB-0548 Equalizing Screw
17 WB-0536 Connection Rod Pin
18 WB-0523 Brake Lining
19 WB-0529 Connecting Rod
20 WB-0510-A Shoe Lever
21 WB-0507-A Frame
22 WB-0512-A Balance Lever
23 WB-0535 Magnet Hinge Pin
24 WB-0533 Armature Pin
25 WB-234 Magnet Adjusting Screw
26 WB-0549-A Assembled Magnet, w/ Coil
27 WB-0516-A Magnet Case
28 WB-0541 Lead Block
30 WB-0528 Dust Shield
31 Q-165 Lead Block Stud
32 WB-0539 Centering Spring Pin
33 WB-0521 Spring Collar
34 WB-0540 Centering Spring
35 Q-106 Guard
36 WB-103 Bushing
37 WB-0525 Retaining Plate
0 WB-0568-A Coil
0 WB-0544 Amateur Pin Bushing
0 WB-0501 Magnet Hinge Pin Bushing
0 WB-0504 Shoe Lever Hinge Pin Bushing
0 WB-0506 Magnet Hinge Pin Bushing
0 WB-0505 Shoe Lever Hinge Pin Bushing
0 WB-0503 Magnet Hinge Bushing
0 WB-0502 Amateur Pin Bushing
